Zinco coupling profile KP40/40 for connecting individual SB200s

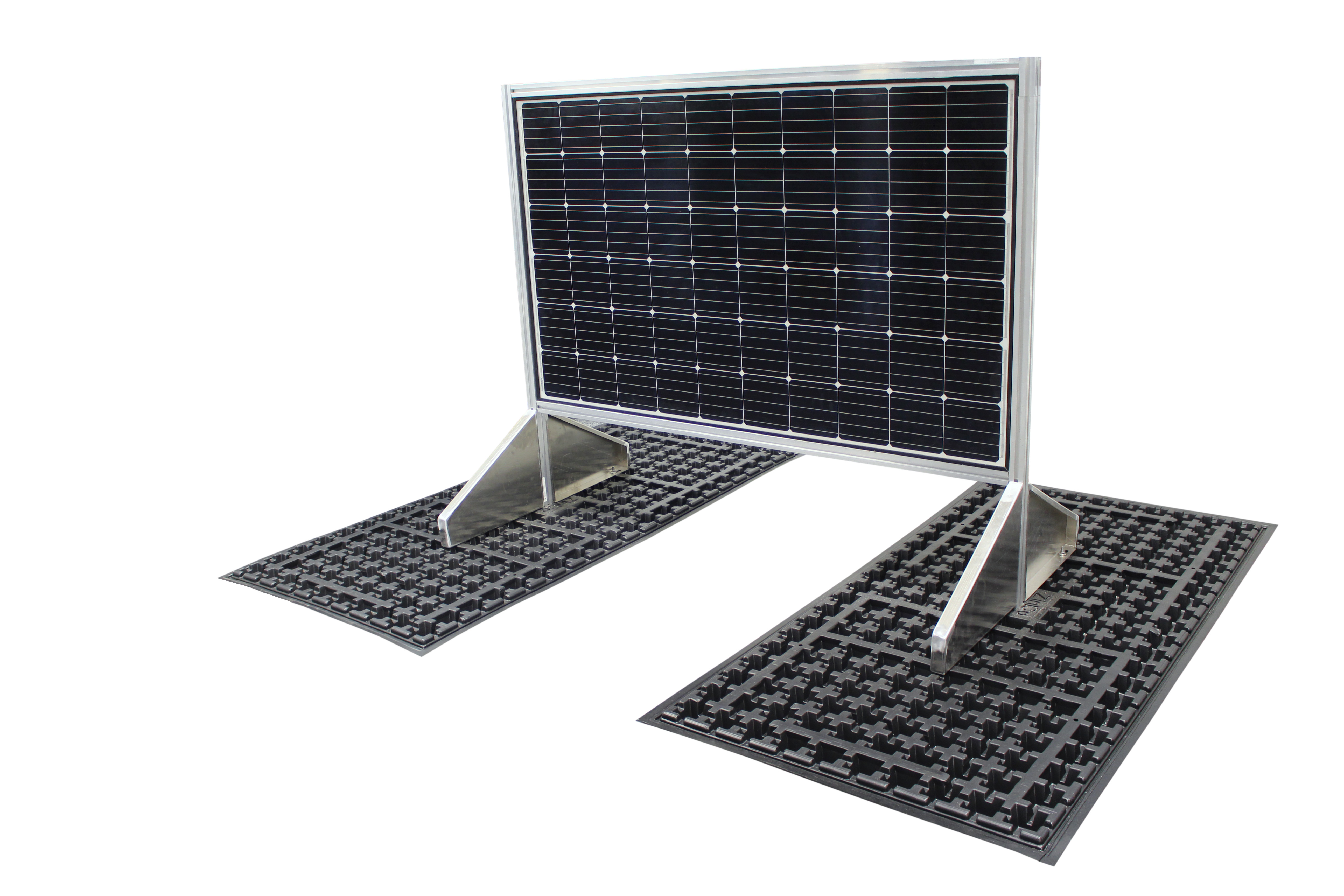

The KP 40/40 coupling profile is part of the vertical solar mounting system for bifacial modules.
made of natural aluminium AlMgSi 0.5, press-finished, W x H = 40 x 40 mm, weight approx. 1.0 kg/m, length 6000 mm, with a mounting groove on each side, mounting to the substrate with hammerhead screws M10, quality A2, additional requirement: two Profile Connectors per joint, Order-Nr.: 3735
| Order Nr.: | 9731 |
|---|---|
| Colour: | Aluminium nature |
| Length [m]: | 6,0 |
| Material: | extruded aluminium AlMgSi 0.5 |
| Width [mm]: | 40 |
| Height [mm]: | 40 |
| Packaging unit: | Piece |
| Weight [kg]: | 6,45 |
| Additional information: | with mounting groove on each side |
Supply and installation of a coupling profile for connecting individual SB 200, made of natural aluminium AlMgSi 0.5, bright pressed, W x H = 40 x 40 mm, weight approx. 1.0 kg/m, length 6000 mm, incl. connectors (2 required per joint) and screwing agent
Product: Zinco "Coupling profile KP 40/40" incl. connector and screwing agent
Unit: pcs
Order Nr.: 9731
Scope of delivery per unit:
1 Zinco Solar Base SB 200
1 Solar base frame set SGS 90
2 coupling profiles
4 module connectors
4 Corner joints
2 center connectors
1 pack of fastening material
Tools required:
Socket wrench SW 15
Socket wrench SW 13
Cut-off grinder
Assembly steps:
Place the Solar base frame set SGS 90 on the pre-assembled fastening points of the Solar Base SB 200.
Hand-tighten SGS 90 with the nuts including washer, tightening torque ≥ 20 Nm.
Lay out SB 200 with mounted SGS 90 according to Zinco planning.
Horizontal coupling profiles with Corner joint...
... or center connector and fastening material with SGS 90, cut the coupling profiles to length according to module size
The horizontal coupling profiles connected to the SGS 90.
Inserting the bifacial module, mounting using 4 module connectors and fastening material on the horizontal coupling profiles.
Fully assembled module unit with 2 SGS 90.
Notice:
- The material temperature should not be below +5 ° when carrying out the installation.
- The SB 200 is placed on a protective layer and must always be completely filled and covered with bulk material.
- Create a Superimposed / extra load in accordance with the structural engineering / structures.
- No liability if the installation instructions are not followed.
