Zinco Solar base frame set SGS 90 for vertical mounting of PV modules
The solar mounting system is matched to the ZinCo Solar Base SB 200 and consists of the SGS 90 Solar base frame set, horizontal coupling profiles and the necessary mounting accessories. Preferably bifacial PV modules (light-absorbing from both sides) are used.
Set pre-assembled, consisting of 2 Solar base frames SGR 90, solar profile, height 1.5 m and mounting accessories.
| Order Nr.: | 970097 |
|---|---|
| Length [m]: | 0,93 |
| Height [mm]: | 1500,0 |
| Packaging unit: | Set |
| Weight [kg]: | 3,4 |
| Additional information: | Set consisting of 1.5 m Solar Profile and 2 Solar Base Frames SGR 90 |
Scope of delivery per unit:
1 Zinco Solar Base SB 200
1 Solar base frame set SGS 90

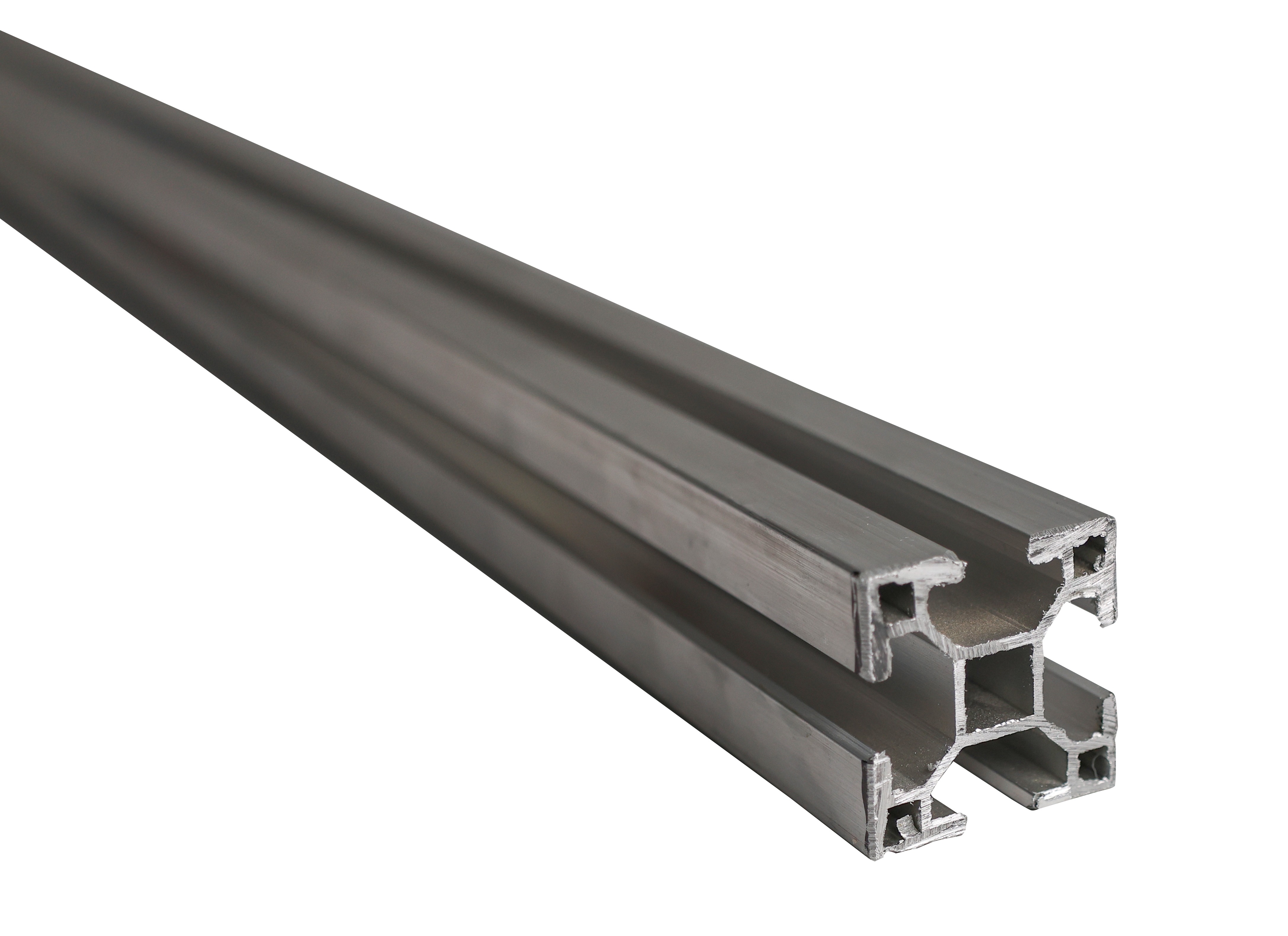

2 coupling profiles

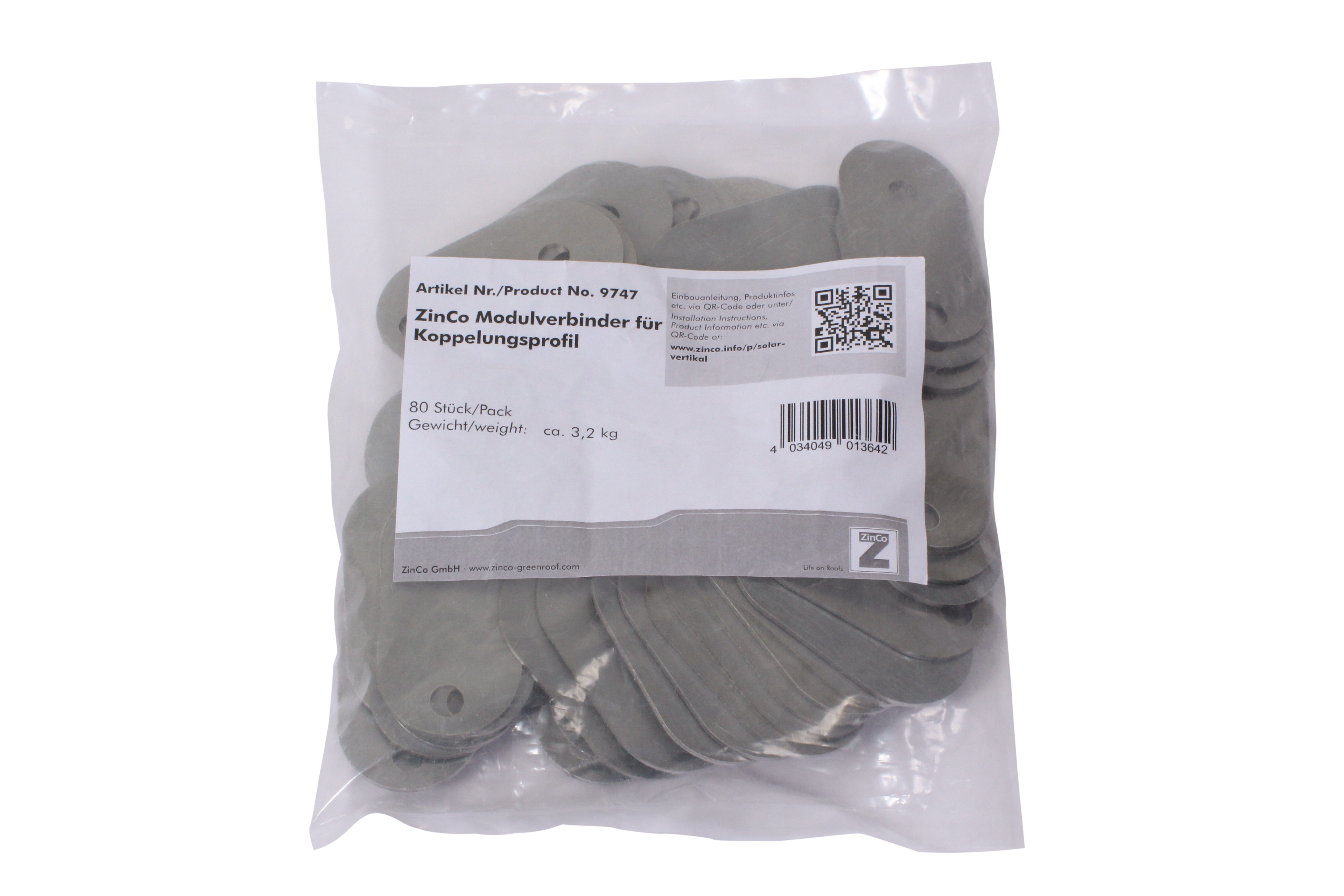

4 module connectors

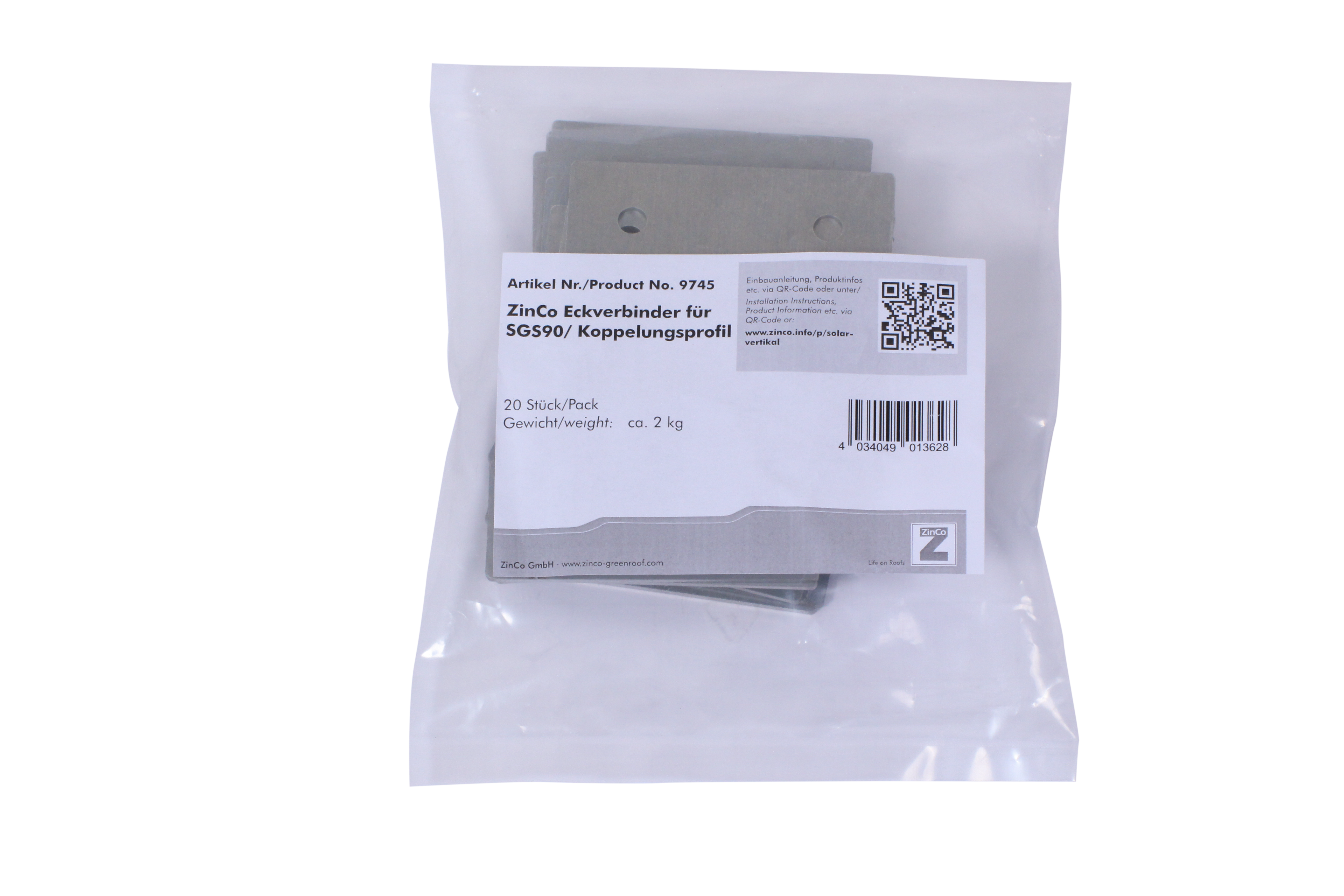

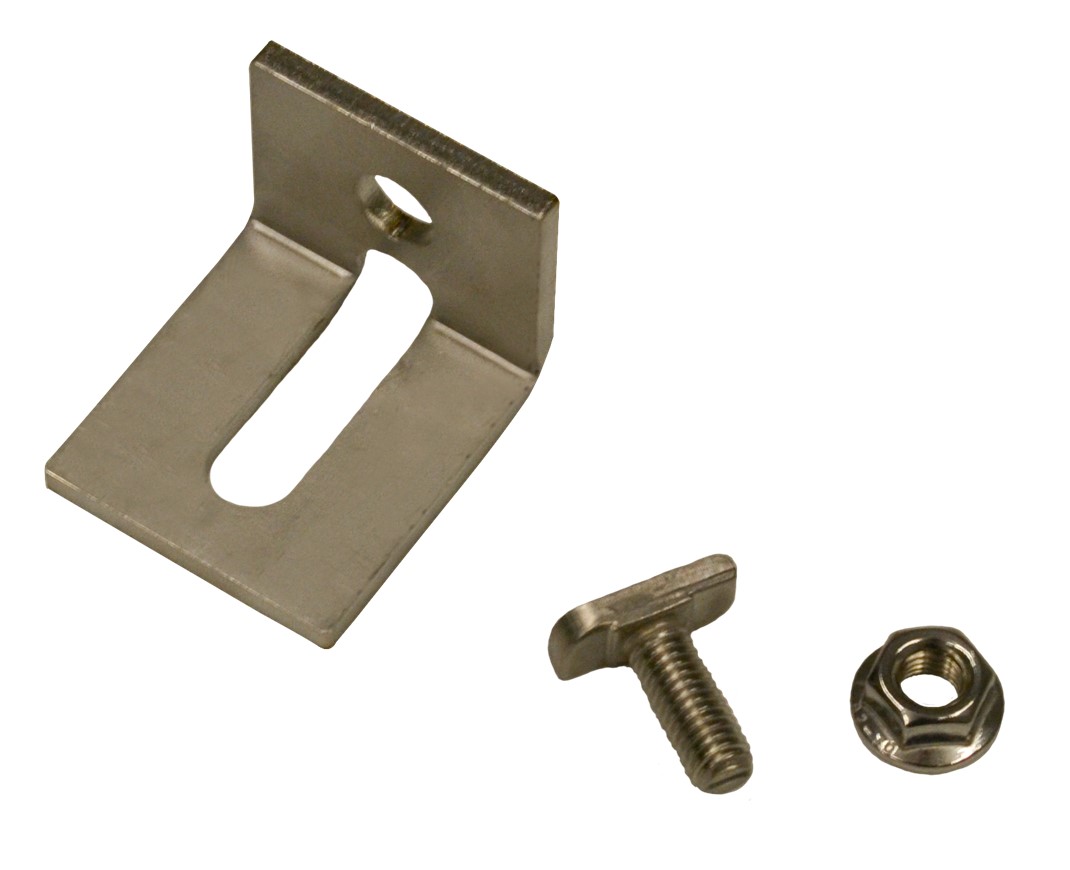

4 Corner joints

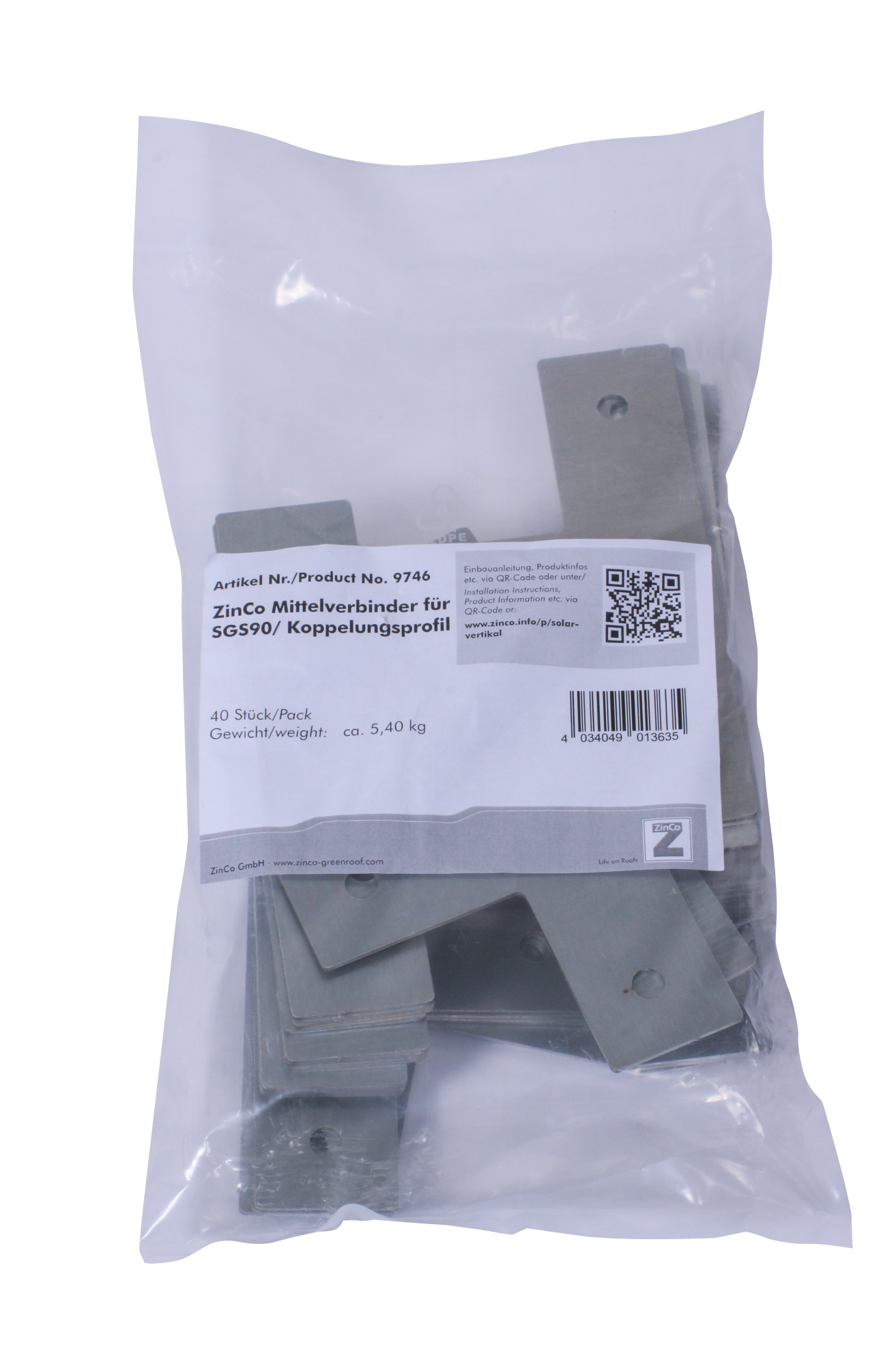

2 center connectors

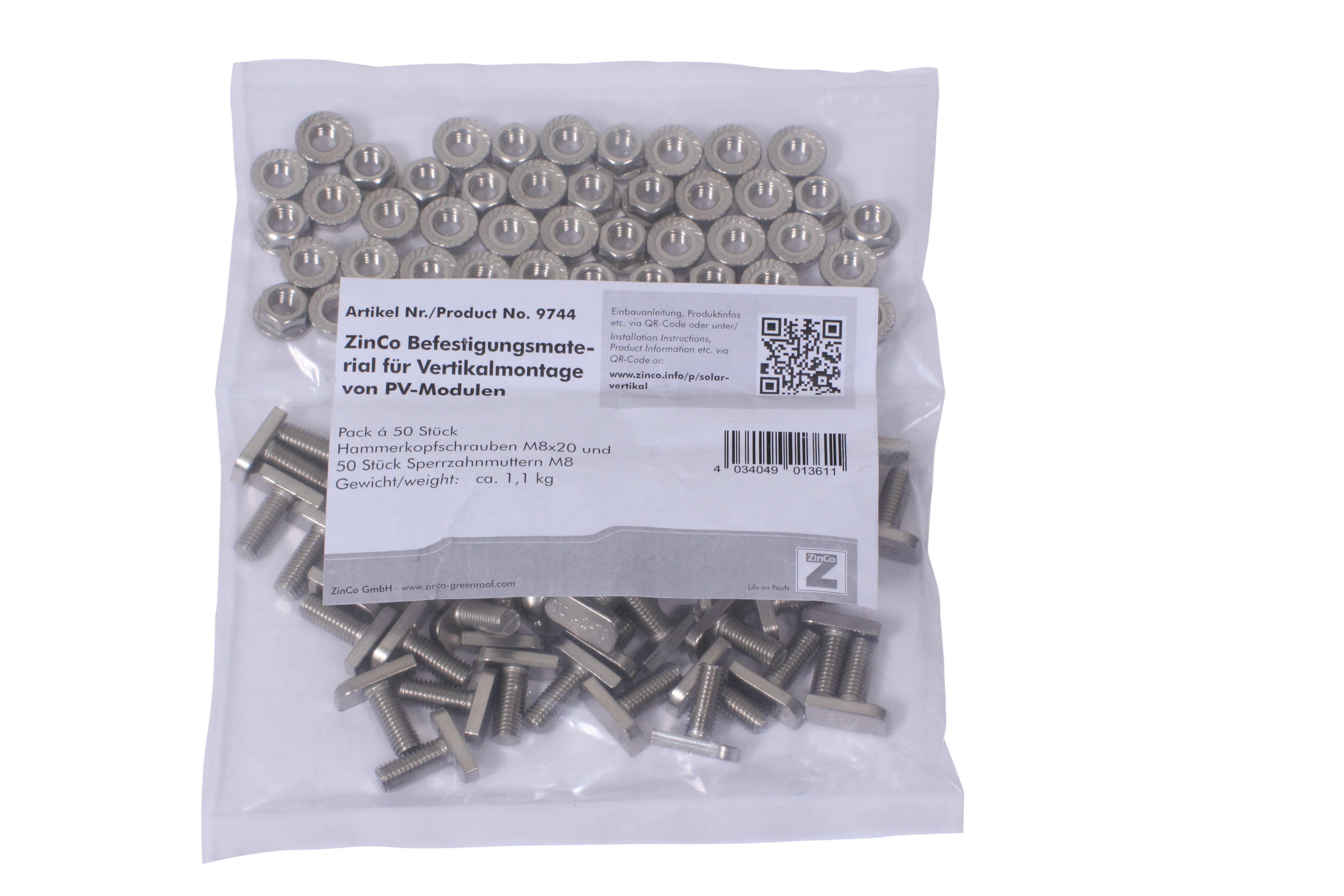

1 pack of fastening material
Tools required:
Socket wrench SW 15
Socket wrench SW 13
Cut-off grinder
Assembly steps:
Place the Solar base frame set SGS 90 on the pre-assembled fastening points of the Solar Base SB 200.
Hand-tighten SGS 90 with the nuts incl. washer, tightening torque ≥ 20 Nm.
Lay out SB 200 with mounted SGS 90 according to Zinco planning.
Horizontal coupling profiles with Corner joint...
... or center connector and fastening material with SGS 90, cut the coupling profiles to length according to module size
The horizontal coupling profiles connected to the SGS 90.
Inserting the bifacial module, mounting using 4 module connectors and fastening material on the horizontal coupling profiles.

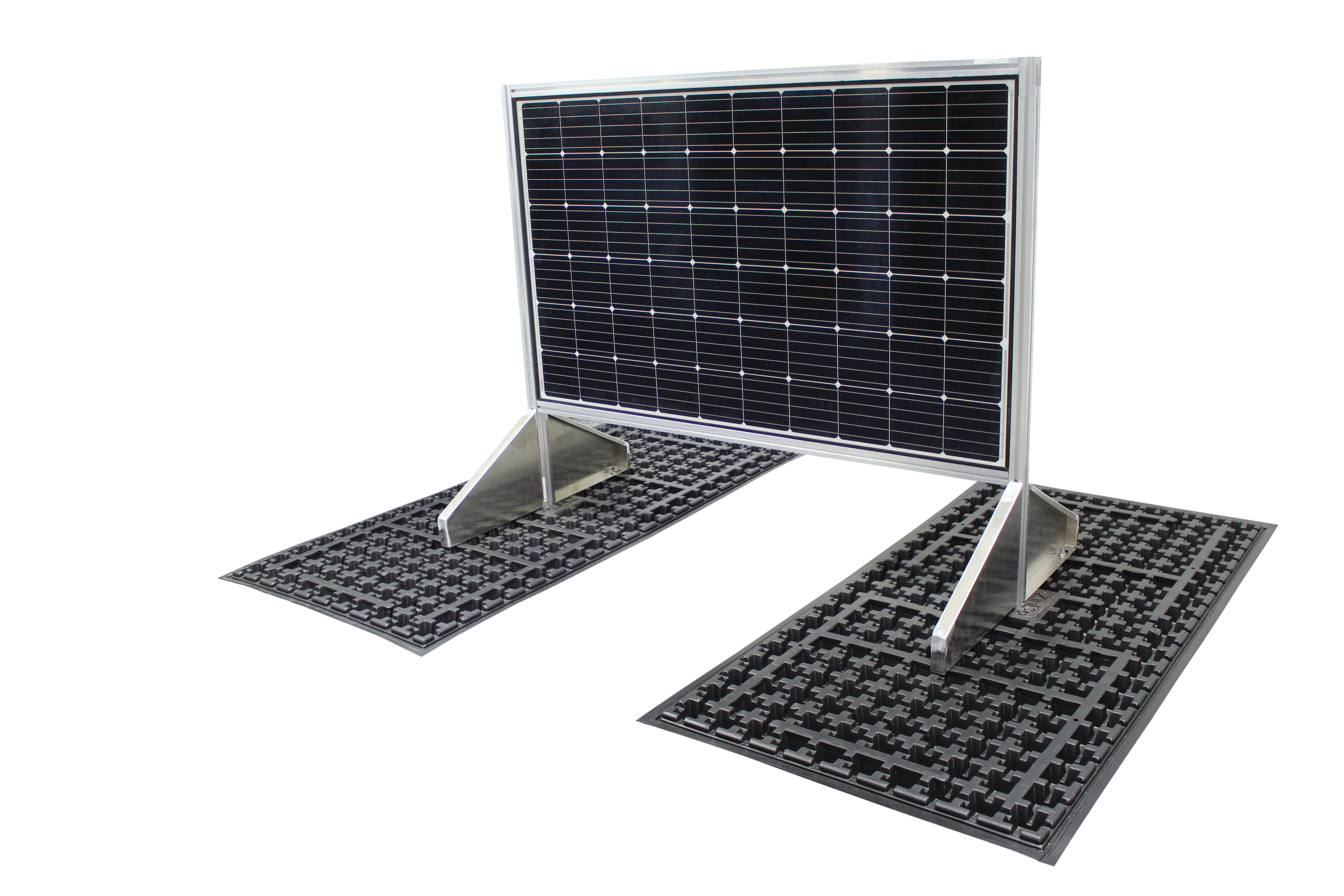

Fully assembled module unit with 2 SGS 90.
Notice:
- The material temperature should not be below +5 ° when carrying out the installation.
- The SB 200 is placed on a protective layer and must always be completely filled and covered with bulk material.
- Create a Superimposed / extra load in accordance with the structural engineering / structures.
- No liability if the installation instructions are not followed.
