Zinco cross connector for SMP 38/33 and KP 40/40, incl. screwing agent
Order Nr.:
9732
Product information "Zinco cross connector for SMP 38/33 and KP 40/40, incl. screwing agent"
Aluminium extruded profile with M8 VA fastening devices for connecting two SMP 38/33 or KP 40/40
| Order Nr.: | 9732 |
|---|---|
| Material: | Aluminium |
| Packaging unit: | Piece |
| Additional information: | Cross connector incl. screw and M8 threaded plate |
This product is part of a system, the tender text can be found here:
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.

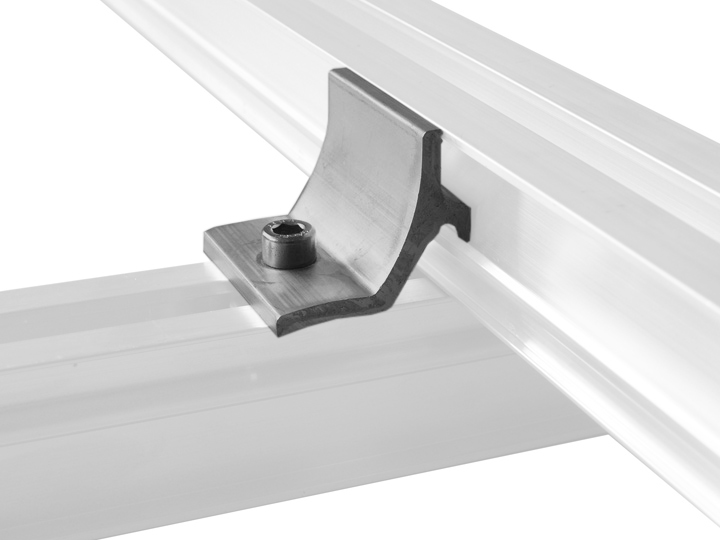

Place two solar mounting profiles at right angles to one another. Position the cross connector onto the rail from above. The screw on the cross connector must be inserted into the groove in the lower rail. At the same time, the retaining flange must engage with the upper rail. Then tighten the screw. Tightening torque: 20 Nm.
This product is accessories from

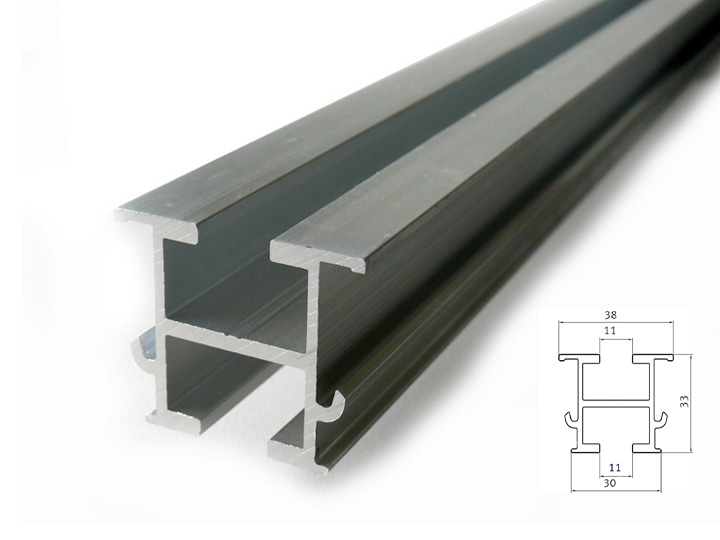

Zinco SMP 38/33 Solar Mounting Profile for Installing Modules / Collectors
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
