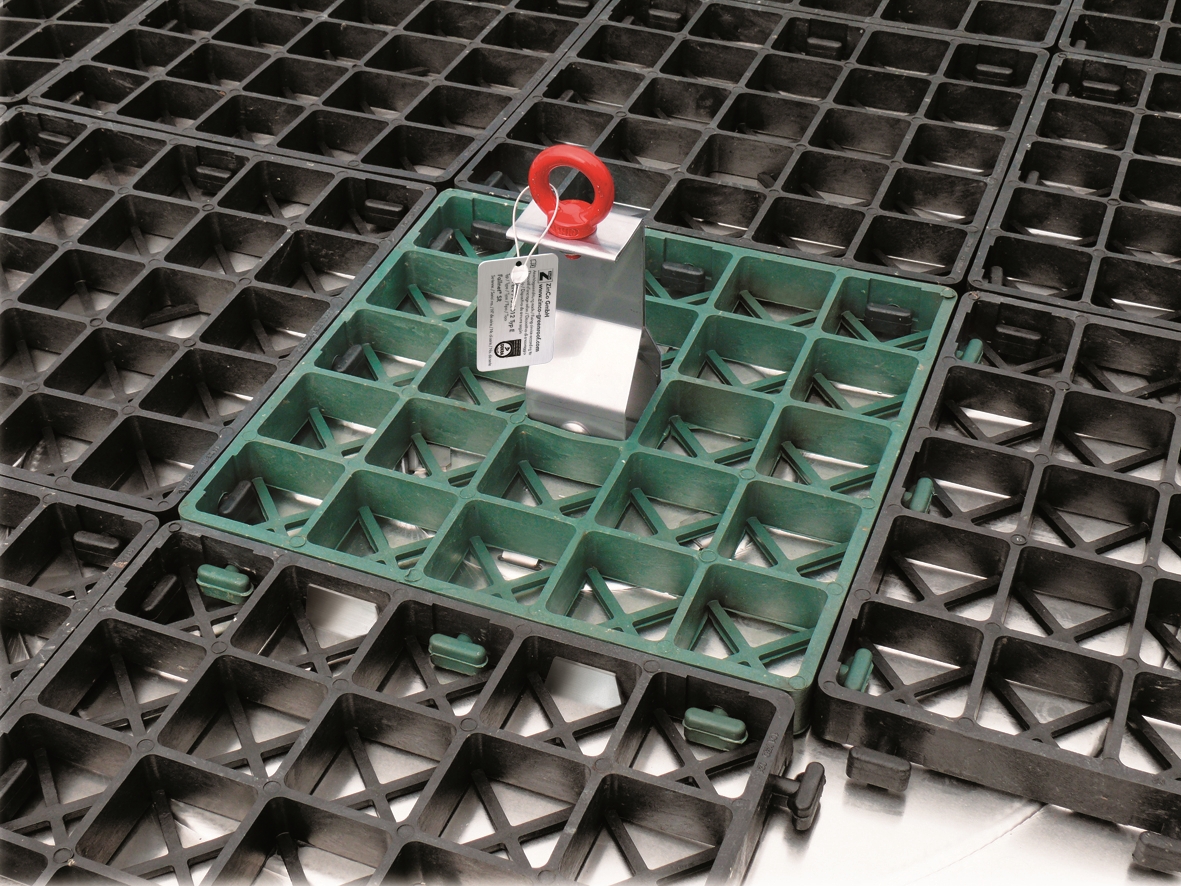

Zinco Fallnet SR, anchor device with grid elements 2.00 x 2.67 m
Superimposed / extra load anchor device in accordance with DIN EN 795:2012 type E. Single anchor point for short-term work with PPE Personal Protection Equipment (e.g. ZinCo Fallnet® PPE-Set, Order No. 9024) on flat roofs with a maximum roof slope of 5°.

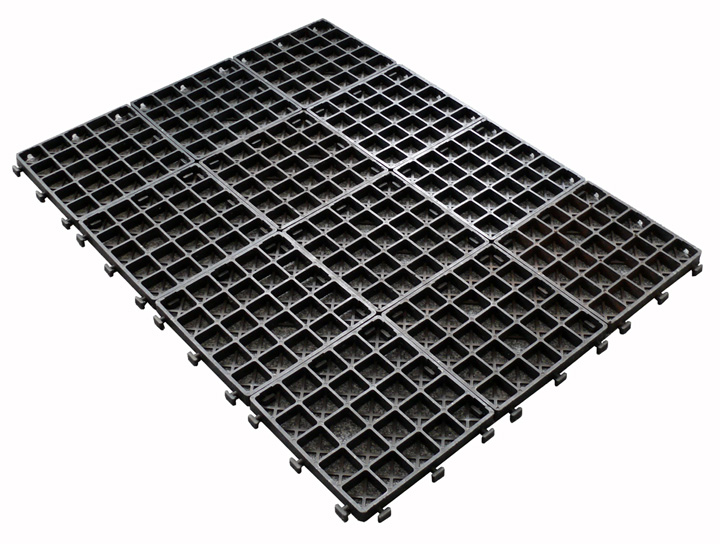

Grid elements made of recycled polyethylene, four individual surfaces to be connected, each 1.00 x 1.33 m, total area approx. 5.33 m², height of grid elements approx. 30 mm, with anchor point consisting of column (for support) and anchor eye made of stainless steel, height approx. 20 cm and base plate made of aluminium, L x W: 75 x 75 cm. Fixing device according to European Standard EN 795:2012 Type E, weight approx. 40 kg. Supplied with installation and Instructions for use and inspection card. Load application on site. Important notices: The Zinco Fallnet® is an anchor device for fall protection on flat roofs that has been tested and certified in accordance with DIN EN 795:2012 type E for one person (up to 100 kg) in conjunction with PPE Personal Protection Equipment (such as the Zinco Fallnet® PPE-Set). According to the certification, the Superimposed / extra load to be applied is generally at least 110 kg/m² and must be increased to 130 kg² if the roof slope is more than 2° (3.4 %) and a fall in the downward direction is possible. Project-related deviations require written approval from Zinco. We expressly notice that, irrespective of product liability, Zinco only accepts liability for advice in the event that installation is carried out in accordance with our planning. Installation without planning by Zinco is at the customer's own risk. The Installation Instructions and the Instructions for Use, both of which are supplied with the products, must be observed regardless of this. Please store in a UV-protected place!
| Order Nr.: | 9050 |
|---|---|
| Material: | Base plate: aluminum; support and eye: Stainless steel, Grid elements: recycled polyethylene |
| Packaging unit: | 4 pre-attached elements + 1 anchor point |
| Weight [kg]: | 40,0 |
| Additional information: | Grid elements à 1.00 x 1.33 m, height approx. 30 mm; anchor point consisting of support and eye, height approx. 200 mm; base plate with locking tabs, L x W: 750 x 750 mm |
in accordance with DIN EN 795:2012, type E, as a roof-penetration-free anchor device for safety equipment for fall protection during care and maintenance work, consisting of grid elements, which are connected from four individual surfaces á 1.00 x 1.33 m to form a panel with a total area of approx. 5.33 m², and an anchor point made of Stainless steel placed inside the panel, and installed according to the manufacturer's specifications. The system is secured using bulk materials approved by the manufacturer.
Superimposed / extra load for DN 0°-2° min.110 kg/m², Superimposed / extra load for DN 2°-5° min. 130 kg/m².
The position planning must be approved by the manufacturer.
Product: Zinco "Fallnet® SR"
Unit: pcs
Order Nr.: 9050
Before installing the Fallnet® SR anchor device, the following points must be checked:
0.1 Scope of delivery/condition of system components To be checked:
Is the delivery complete and in perfect condition?
Important:
Incomplete, incorrect, or defective deliveries must be reported immediately. The scope of delivery for each Fallnet® SR consists of:
- anchor point:
1 = Base plate with vertical locking tabs
2 = Support
3 = Anchor eye
4 = Identification label
- Load-bearing panel (2.00 × 2.67 m) consisting of four pre-assembled grid elements:
5 = four pre-assembled grids à 1,00 x 1,33 m
6 = Marker and device for correctly positioning the single anchor point
7 = 1.00 m
8 = 1.33 m
0.2 Assessment of the Initial Situation
Before beginning installation, verify that the roof structure is sufficiently dimensioned for the loads to be applied, that the waterproofing / sealing and, if applicable, root protection are in place, and whether the actual substrate for the Fallnet® SR is properly and evenly laid and has no more than a 5-degree (= 8.8%) inclination. If there are any doubts, these must be clarified before installation. The substrate must be free of dirt, oil, algae, etc., for the installation of Fallnet® SR. The surface may need to be swept clean, for example.
0.3 General Information
The installation of Fallnet® SR can be carried out, for example:
- on the protective layer over the waterproofing / sealing (e.g., Zinco SSM 45 Protection Mat / Moisture Retention for single-layer greening)
- on the Filter Sheet (for a multi-layer green roof)
- Care must be taken to ensure that there are no objects (e.g., concrete slabs) in the area around the anchor point (radius of at least 0.5 m) that could prevent the column (for support) from folding as intended.
- Furthermore, ensure that the bulk material to be applied to Fallnet® SR as a superimposed / extra load extends at least 50 cm beyond the grid elements on all four sides.
Important:
Direct contact with the superimposed / extra load (bulk material) is always required! To this end, the Fallnet® SR must be completely infilled with suitable bulk material and covered (UV protection!).
This can be achieved using Zincolit® or Zinco System Substrate, 16/32 mm gravel / grit, or a comparable bulk material. Installation is permitted on roof slopes of up to 5 degrees (= 8.8%)!
The required superimposed / extra load (dry weight) for the Fallnet® SR is at least 110 kg/m². This must be increased to 130 kg/m² if the roof slope exceeds 2° (3.4%) and a fall in the direction of the slope is possible.
If the Fallnet® SR is integrated into a Green Roof, a gravel strip with a width of at least 0.30 m should be provided around the anchor point to make it more easily recognizable.
1.1 Measuring the anchor point
The position of the anchor point must be determined using a roof layout plan. Care must be taken to ensure that the anchor eye is at least 2.50 m away from the building edge / drop edge.
1.2 Connect the marked grid element to the anchor point
Place the centrally punched opening of the colored element of the pre-assembled grid element (1.00 × 1.33 m) over the anchor point and carefully snap it into place by applying pressure with your foot, so that it rests fully on the base plate and the vertical strips of the base plate engage behind the outer web of the adjacent black grid.
1.3 Positioning the grid element including the anchor point
Position the grid element, including the anchor point, at the measured point (see 1.1).
1.4 Connecting the four grid elements
The three remaining grid elements are then connected to each other so that the anchor point lies at the center of the assembled grid surface. Together, the four pre-assembled grid element units form a continuous panel of approx. 5.3 m². The Fallnet® SR must lie completely on a level surface; all connection points must be locked into place. Locked elements can be released by tapping with a hammer. Defective elements must be replaced.
1.5 Applying the Required Superimposed / Extra Load
The completed Fallnet® SR is now infilled with the superimposed / extra load (e.g., Zinco System Substrate or 16/32 mm gravel / grit) and covered; see 0.3 General Information for requirements.
2. Adaptation to site-specific conditions
Fallnet® SR offers the option of adapting the standard shape (2.00 × 2.67 m) to the structural conditions as needed.
Schematic (standard):
.webp)
1 = Fall Edge
2 = 48 grid elements à 0.33 x 0.33 m
3 = Anchor Point
4 = Cover with bulk material to extended at least 500 mm beyond the grid
Schematic representation of the standard installation of the centrally placed anchor point with the four pre-assembled grid elements (each 1.00 × 1.33 m).
Installation with obstacles:
1 = Fall Edge
By repositioning the individual grid elements, protruding structural elements or vents, outlets, etc., can be accommodated. It is important to note that the anchor point must not be positioned in the two outer rows of grid elements. Additionally, the anchor point must be centered within a grid element (0.33 × 0.33 m). In the direction of stress, there must be at least 20 grid elements behind the anchor point. It is recommended to have such non-standard installation of Zinco planned or inspected.
3.1 Completion, Identification Mark
Ensure that all work has been properly performed and that the identification mark is clearly and permanently visible. Only anchor devices marked with a mark may be used.
3.2 Installation Documentation
The installation documentation serves as proof to the client that the installation was performed properly. Furthermore, it is an indispensable basis for a subsequent inspection of the Fallnet® anchor device(s). A template for the installation documentation is available from the manufacturer as a PDF file. Copies of the document must be handed over to the client after installation is complete and kept on site for later inspection of the Fallnet®.
- Property address
- Installation company
- Responsible installer
- Fallnet® serial numbers
- Information on the superimposed / extra load (type of bulk material, bulk weight; include delivery slip if available)
- Installation plan (please also enter the serial numbers there)
The installation plan should be displayed on the building where it is visible to everyone, e.g., near the roof hatch.
Confirmations by the person responsible for installation (signed by this person):
- The Fallnet® Installation Instructions were followed.
- Installed as planned
- The minimum load requirements were met Photographic documentation, especially of details that will be invisible in the final state.
3.3 Handover of Fallnet® SR documents to the client/owner
The following documents to be handed over are included in the scope of delivery:
- Installation and instructions for use
- Inspection card. Please enter the serial number(s) of the Fallnet®. You will find these on the identification mark directly on the product. Fallnet® SR must be inspected regularly. (You will receive one inspection card per product, but you may list all serial numbers for a single construction project on a single inspection card.)
The following should also be provided:
- Installation documentation
- Site plan
3.4 Questions
If you have any questions, are unsure about the proper use or installation of the products, or would like further, detailed information for your specific project, please contact Zinco GmbH.
