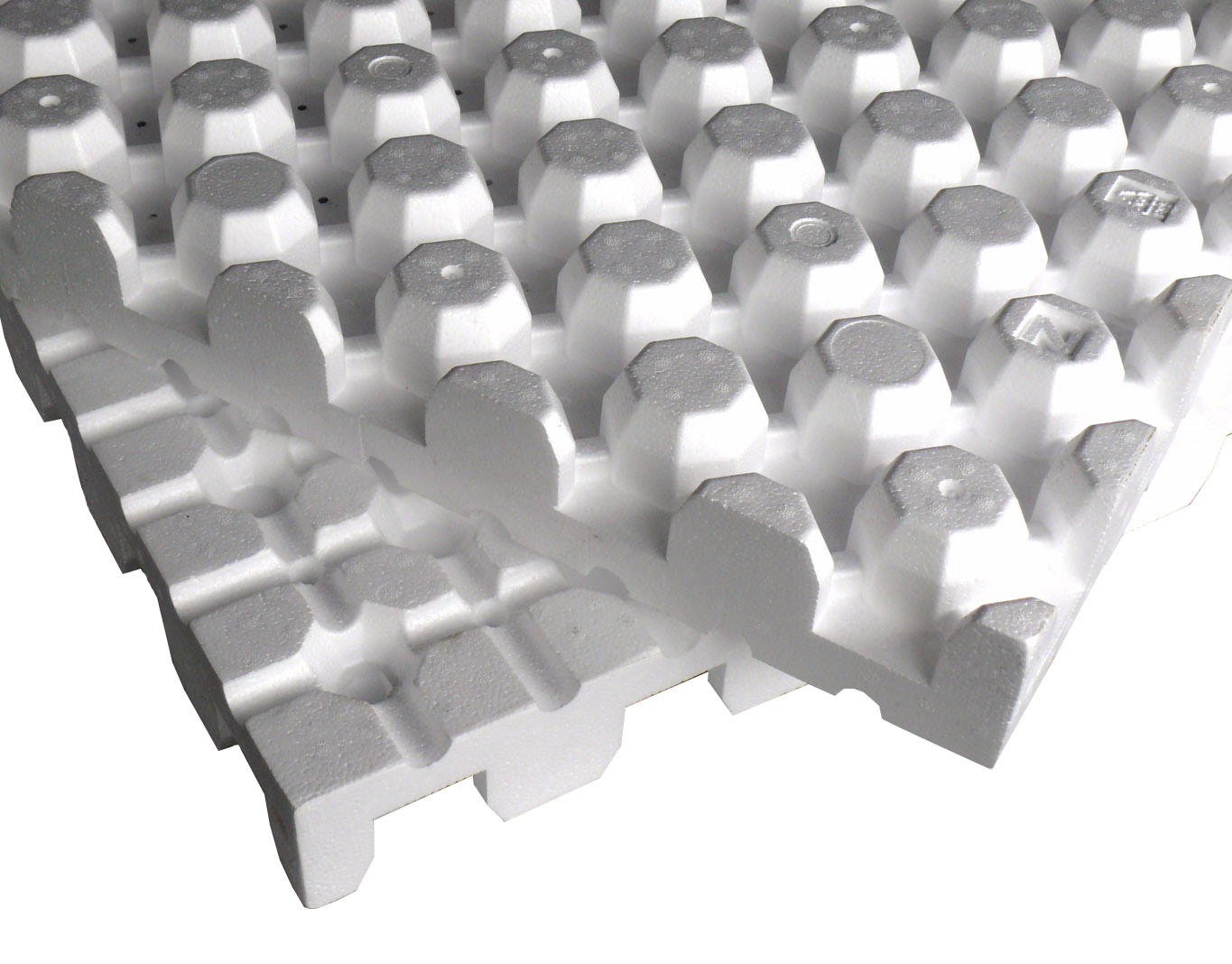

Zinco Floraset FS 75 board 1 x 1 m, approx. height 75 mm
Drainage element usable on both sides made of expanded polystyrene foam for use with extensive and simple intensive green roofs on shallow and pitched roofs.
Sturdy drainage element made of rigid expanded polystyrene foam, manufactured without CFCs or HBCD, featuring water storage troughs / cells, openings for diffusion, and a drainage channel system on both sides; compressive strength at 10% compression is approx. 55 kN/m²; weight per unit area is approx. 1.0 kg/sq m; component of a system design with an Environmental Product Declaration (EPD).
| Order Nr.: | 3076 |
|---|---|
| Colour: | white |
| Length [m]: | 1,0 |
| Material: | EPS |
| Width [m]: | 1,0 |
| Height [mm]: | 75,0 |
| Packaging unit: | Board |
| Weight [kg/m²]: | 1,0 |
| Pressure [kN/m²]: | 55.0 (with 10% yield) |
| Water storage capacity [l/m²]: | 3,0** |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 1,54** |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 2,21** |
| Compatible with bitumen: | yes |
| UV-stabilized / protected against UV light: | no |
| Additional information: | Shear strength: 5 kN/m; apparent density: approx. 23 kg/m³; fill volume when installed with studs facing up: approx. 20 l/m²; * = large studs on top; ** = large studs on bottom |
Made of expanded rigid polystyrene foam, CFC-free and HBCD-free, height approx. 75 mm, with water storage troughs / cells, openings for ventilation and diffusion, as well as a multidirectional channel system on both sides, Weight approx. 1 kg/m², compressive strength up to approx. 55 kN/m², water drainage capacity tested according to EN ISO 12958: roof slope 1 %—approx. 1.54 l/s*m, roof slope 2 %—approx. 2.21 l/s*m; component of a system with an Environmental Product Declaration (EPD); deliver and install with the studs facing down according to the manufacturer’s instructions.
Brand: Zinco Floraset® "FS 75"
Unit: m²
Order Nr.: 3076
Installation should not be carried out if there is a risk of storms.
Installation:
Floraset® FS 75 slabs are usable on both sides and are laid butt-jointed. They are laid with the studs facing downwards when used on flat roofs and with the studs facing upwards when used on pitched roofs (up to 25° roof slope).
After installation, the drainage elements must be covered immediately (UV protection!) and secured against blowing away.
Cutting:
The Floraset® slabs can be cut with an (electric) foxtail. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The drainage elements above roof outlets must be cut out in a circle, approx. 10 mm larger than the roof outlet all round.
