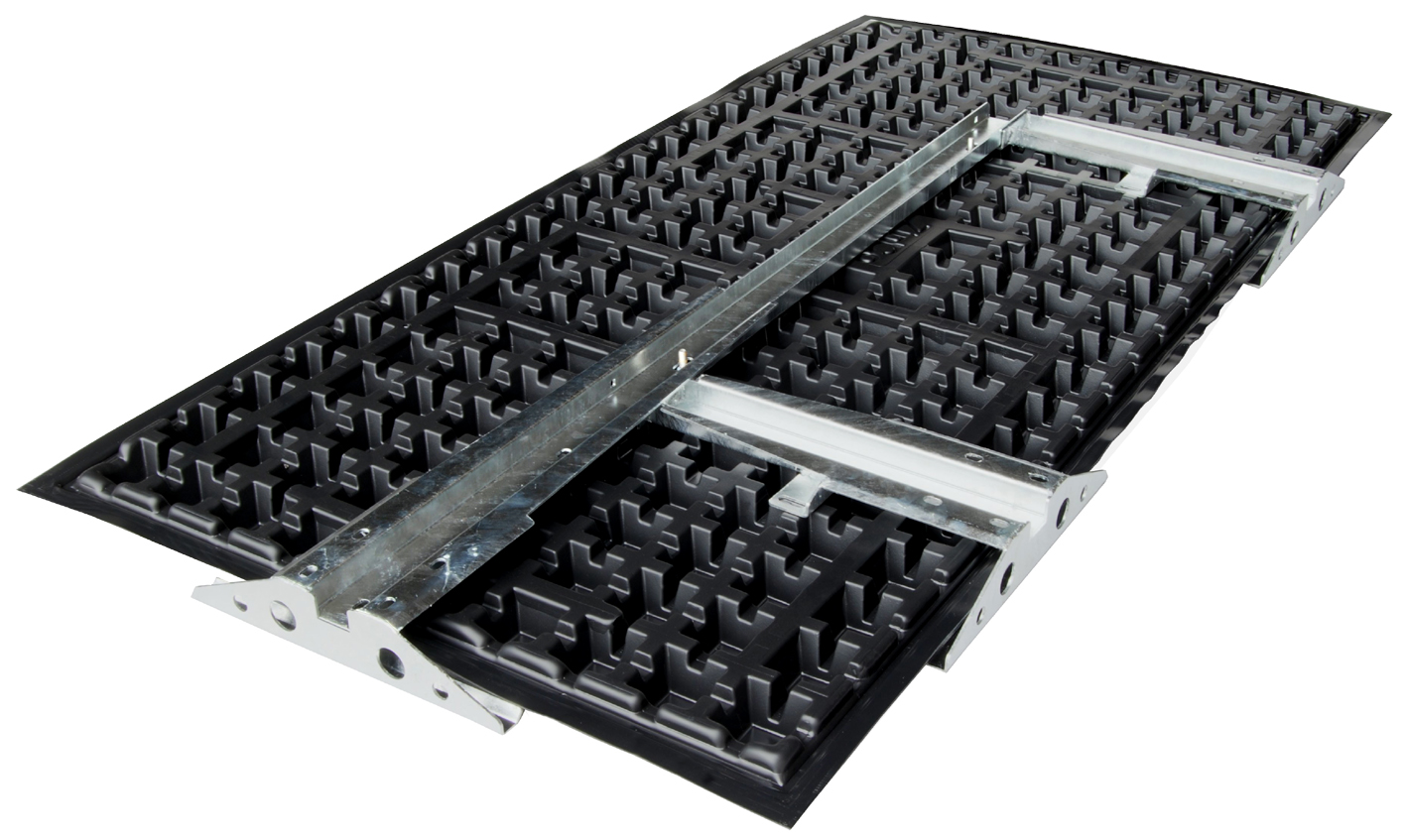

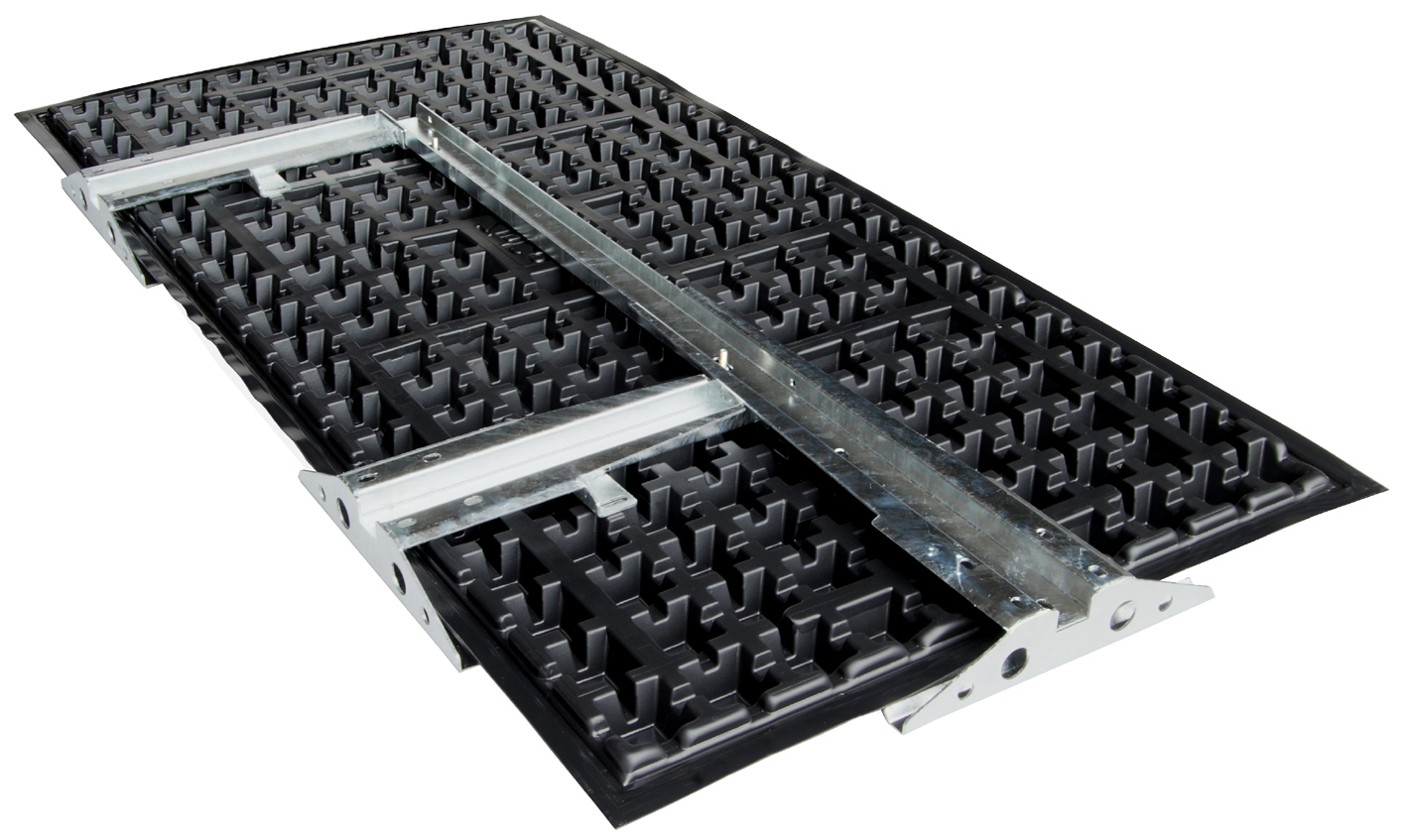

Zinco Guardrail Base GB-corner left, with three post supports
Superimposed / extra load supported construction base for penetration-free railing solutions such as the ZinCo Railing System or on-site railings (also available with additional fastening option on request for Fallnet® SB 200-Rail) on flat roofs or roof terraces. Superimposed / extra load can be provided by concrete slabs in a chippings bedding or bulk materials (gravel, greening substrates, etc.).
Construction base for penetration-free railing corner solutions made of profiled ABS plastic with integrated aluminium profiles on the underside and one on the front and two short ones on the long side, post support with one galvanized steel fixing flange each, in accordance with DASt guideline 022, to accommodate 4 M 10 screws at 100 x 75 mm spacing, height of fixing flange above top of Base plate approx. 35 mm, backfill volume to top of Base plate approx. 16 l/sqm, dimensioned according to DIN EN 1991-1-1/NA for horizontal forces up to 1 kN/m, total height approx. 78 mm.
| Order Nr.: | 3445 |
|---|---|
| Colour: | black |
| Length [m]: | 2,0 |
| Material: | Base plate made of ABS-plastic with integrated aluminium profiles on the underside, Post support: galvanized steel |
| Width [m]: | 1,0 |
| Height [mm]: | 78.0 (total) |
| Packaging unit: | Piece |
| Weight [kg]: | 16.0 (total) |
| Pressure [kN/m²]: | 250.0 (with 10% yield) |
| Backfill volume [l/m²]: | 16,0 |
| Compatible with bitumen: | Yes |
| Additional info: | Post support: Length approx. 1470 mm, height approx. 35 mm from top of Base plate. Fixing flange: four slotted holes for M 10 screws, spacing 100 x 75 mm. |
Construction base for penetration-free railing solutions made of profiled ABS plastic, total height approx. 78 mm, length x width approx. 200 x 100 cm, height of Base plate approx. 43 mm, with aluminium stiffening profiles on the underside, one post support on the end face and two short post removals on the long side with horizontal fixing flange made of steel, galvanized steel in accordance with DASt guideline 022, to accommodate 4 M 10 screws at 100 x 75 mm spacing, height of fixing flange above top of Base plate approx. 35 mm, dimensioned in accordance with DIN EN 1991-1-1/NA for horizontal forces up to 1 kN/m with a Superimposed / extra load of at least 200 kg/m², supplied and butt-jointed tightly
of the Base plate with gravel or stone chippings (grain size max. 8/16 mm), requirement approximately / approx. 16 l/m².
With a concrete slab, the chippings bedding above the system base must be at least 5 cm so that the fixing flange is covered with approximately / approx. 1.5 cm of stone chippings.
Product: Zinco Guardrail Base GB-corner Left
Unit: pcs
Order Nr.: 3445
This product is also available in other dimensions / measurements / specifications
