Zinco extension piece for TR-H 40 x 40 Height approximately / approx. 6 cm
Extension piece for Terrace grill TR-H 40 x 40
Order Nr.:
4412
Product information "Zinco extension piece for TR-H 40 x 40 Height approximately / approx. 6 cm"
Outer dimensions 40 x 40 cm, galvanized sheet steel and laminated / plastic-coated in antique silver, weight approximately / approx. 1.2 kg/piece
| Order Nr.: | 4412 |
|---|---|
| Colour: | antique silver |
| Material: | Galvanized steel, plastic-coated |
| Length [mm]: | 400,0 |
| Width [mm]: | 400,0 |
| Height [mm]: | 60,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 1,2 |
from item '.........' made of galvanized and laminated / plastic-coated
Sheet steel, to gradually raise the Terrace grill by approximately / approx. 6 cm for greater thicknesses, supply and install according to manufacturer's instructions.
Product: Zinco "Extension piece for TR-H 40 x 40"
Unit: pcs
Order Nr.: 4412
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
The Terrace grill TR-H must be installed on the protective layer above the terrace drainage system, the coarse height adjustment is made by selecting the appropriate gravel stop frame. After completion of the decking surface, the height is fine-adjusted from above using a screwdriver. It is not necessary to remove the grate.
Installation of extension piece for TR-H (Order No. 4412)
Extension pieces (Order No. 4412) are used to adjust to the desired height. These are placed under the Terrace grill on the protective layer. A maximum of three extension pieces are possible. The Terrace grill is placed on the last extension piece. After completion of the decking surface, the height is fine-adjusted from above using a screwdriver. It is not necessary to remove the grating.
The Terrace grill TR-H must be installed on the protective layer above the terrace drainage system, the coarse height adjustment is made by selecting the appropriate gravel stop frame. After completion of the decking surface, the height is fine-adjusted from above using a screwdriver. It is not necessary to remove the grate.
Installation of extension piece for TR-H (Order No. 4412)
Extension pieces (Order No. 4412) are used to adjust to the desired height. These are placed under the Terrace grill on the protective layer. A maximum of three extension pieces are possible. The Terrace grill is placed on the last extension piece. After completion of the decking surface, the height is fine-adjusted from above using a screwdriver. It is not necessary to remove the grating.
1.1 Concrete or natural stone slabs, d ≥ 40 mm
1.2 Chippings bedding, low-lime, 30-50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion downwards)
1.4 Protection Mat / Moisture Retention SSM 45
1.5 Suitable roof construction with root resistant waterproofing
2.1 Terrace grill TR-H 40 x 40 - 65
2.2 Extension piece for TR-H 40 x 40 - 65
3.1 Roof outlet
1.2 Chippings bedding, low-lime, 30-50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion downwards)
1.4 Protection Mat / Moisture Retention SSM 45
1.5 Suitable roof construction with root resistant waterproofing
2.1 Terrace grill TR-H 40 x 40 - 65
2.2 Extension piece for TR-H 40 x 40 - 65
3.1 Roof outlet
This product is accessories from
Extension piece for Terrace grill TR-H 40 x 40

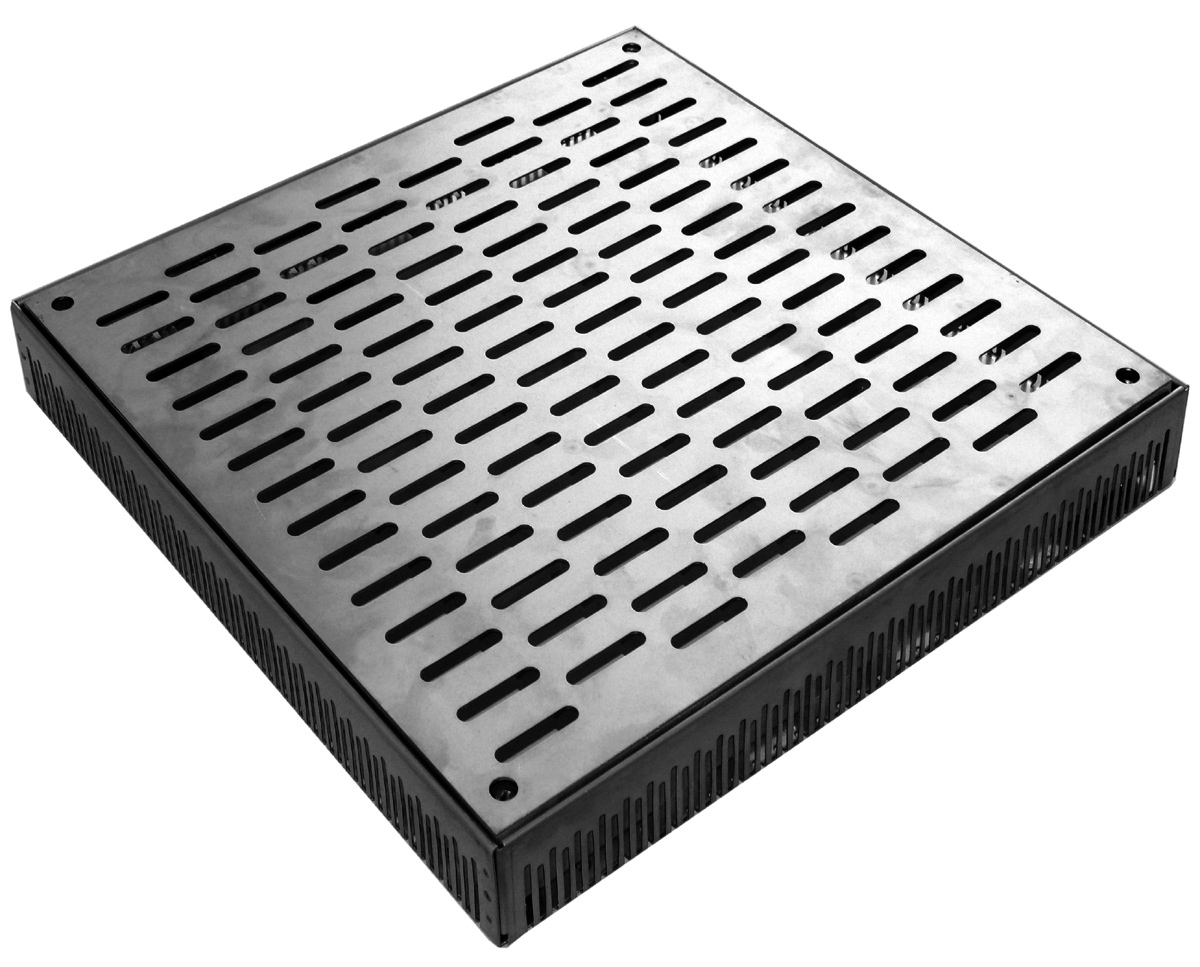

Zinco Terrace grill TR-H 40 x 40-E, Stainless steel, slotted holes, HV 65-95
Sturdy gratings made of galvanized steel for installation over a terrace drain
Sturdy gratings made of galvanized steel for installation over a terrace drain
Extension piece for Terrace grill TR-H 40 x 40
Zinco Terrace grill TR-H 40 x 40-95 vertically adjustable from 95 to 125 mm
Sturdy gratings made of galvanized steel for installation over a terrace drain.
Sturdy gratings made of galvanized steel for installation over a terrace drain.
