Zinco Inspection Chamber KS 10/30-GR Height 10 cm, with metal grate / grid
Top-mounted Inspection Chamber for securing and checking roof outlets within extensive green roofs and gravel-covered roofs. With extension piece(s) also suitable for use within intensive green roofs.
Outer dimension of the chamber approx. 30 x 30 cm, aperture size approx. 24 x 24 cm, made of plastic-coated aluminium with drainage slots on the side, insertable / can be walked over, hot-dip galvanized metal grating, mesh width approx. 30 x 10 mm, with pull-out support flange on two opposite sides, with flange approx. 30 x 53 cm, load bearing in accordance with class H to DIN 19599, weight approx. 3.3 kg/piece
| Order Nr.: | 4009 |
|---|---|
| Colour: | antique silver |
| Machine width [mm]: | 30 x 10 |
| Material: | Metal grate / grid: hot-dip galvanized, Shaft: aluminium, plastic-coated |
| Height [mm]: | 100,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 3,3 |
| Outer dimension of the chamber [mm]: | 300 x 300 |
| Aperture dimension [mm]: | 240 x 240 |
| Flange [mm]: | 300 x 530 |
Height 10 cm, outer dimension of the chamber approx. 30 x 30 cm, aperture dimension approx. 24 x 24 cm, made of plastic-coated aluminium, Colour antique antique silver, with pull-out support flange on two opposite sides, circumferential drainage slots, insertable and walkable, hot-dip galvanized metal grate / grid, mesh width / mesh size approx. 30 x 10 mm, supply and install on the drainage elements above the roof outlets.
Make: Zinco Inspection Chamber "KS 10/30-GR"
Unit: pcs
Order Nr.: 4009
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Inspection Chambers protect outlets from contamination and ensure easy access for inspection and maintenance.
Installation of Inspection Chamber:
Before installation, the flanges of the Inspection Chamber must be pulled out in the direction of the arrow until they click into place. An Inspection Chamber is then placed above each roof outlet, usually directly on the drainage element. All layers in the diameter of the outlet are cut out beforehand. A cross cut is not sufficient for this.
The Filter Sheet is laid over the Inspection Chamber and cut out so that the slots of the Inspection Chamber remain free, but the two flanges are covered. The size of the opening to be cut out is approximately / approx. 30 cm × 30 cm.
For single-layer greening, the Inspection Chamber is laid directly on the protective mat.

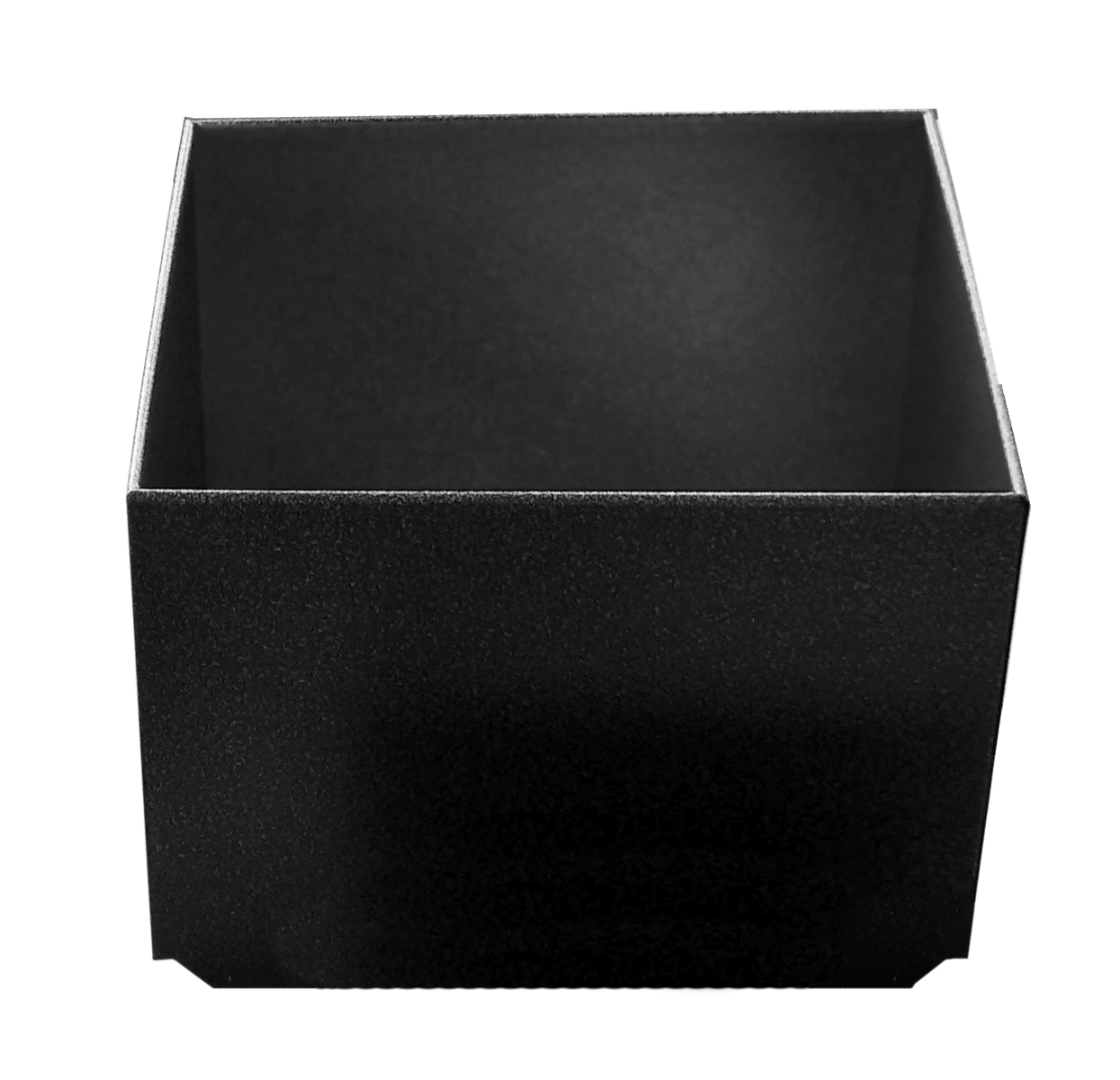

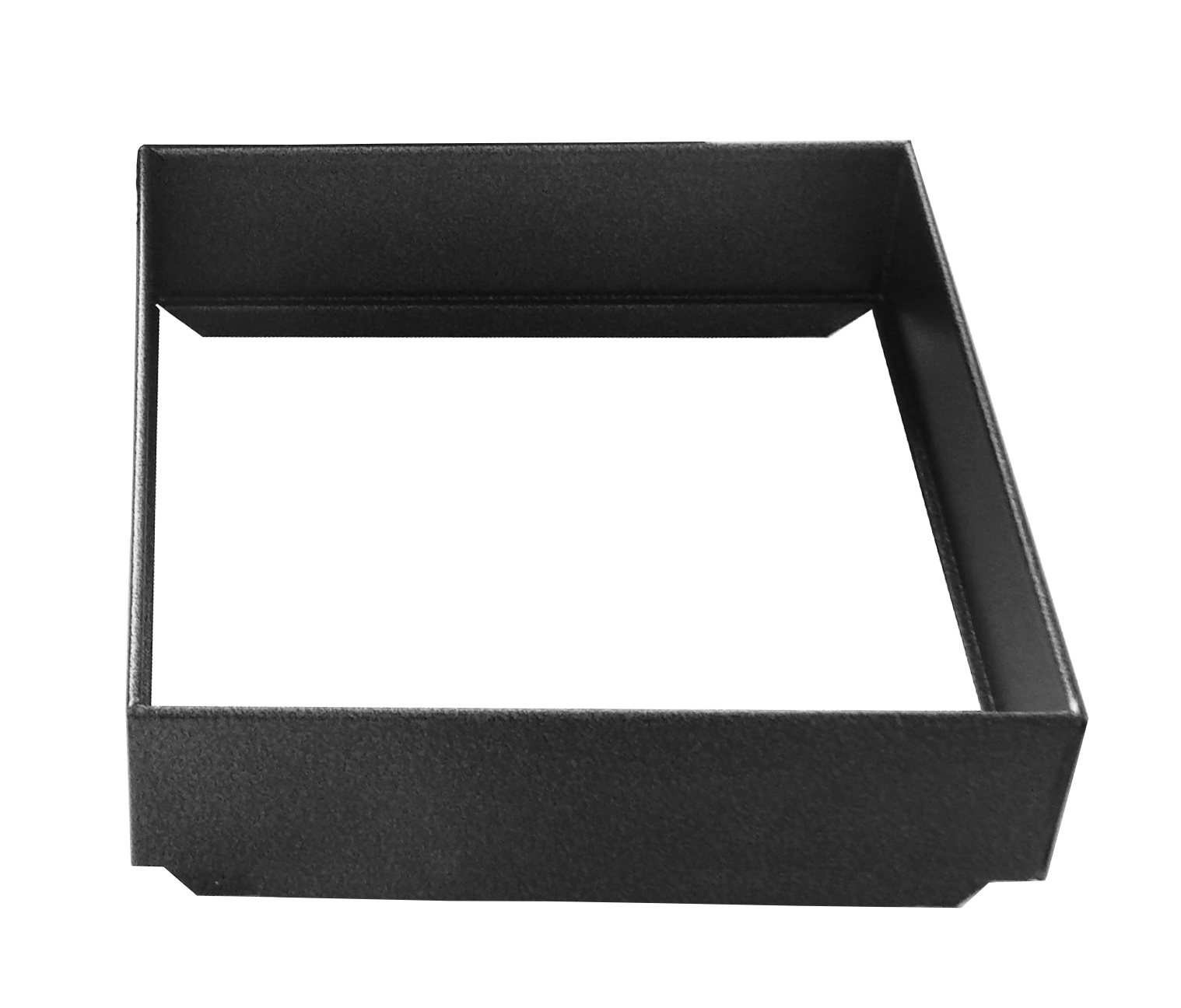

If extension pieces (KSA 8/30 or KSA 20/30) are used, the cover, lid / metal grate / grid of the Inspection Chamber is removed for installation, the required number of extension pieces are fitted and the cover / grate / grid is placed back on the Inspection Chamber (max. height approximately / approx. 60 cm).
A gravel strip approximately / approx. 30 cm wide is placed around the Inspection Chamber. This prevents slippage and the ingrowth of plants and provides a visual marker.
It is advisable to apply the gravel / grit before the System Substrate / Substrate Soil / Growing Medium. When applying the gravel, the shaft can be covered with a piece of Filter Sheet to prevent debris and damage to the cover, lid.
During subsequent work, care must be taken to ensure that the Inspection Chamber is not displaced and remains in position above the roof outlet.

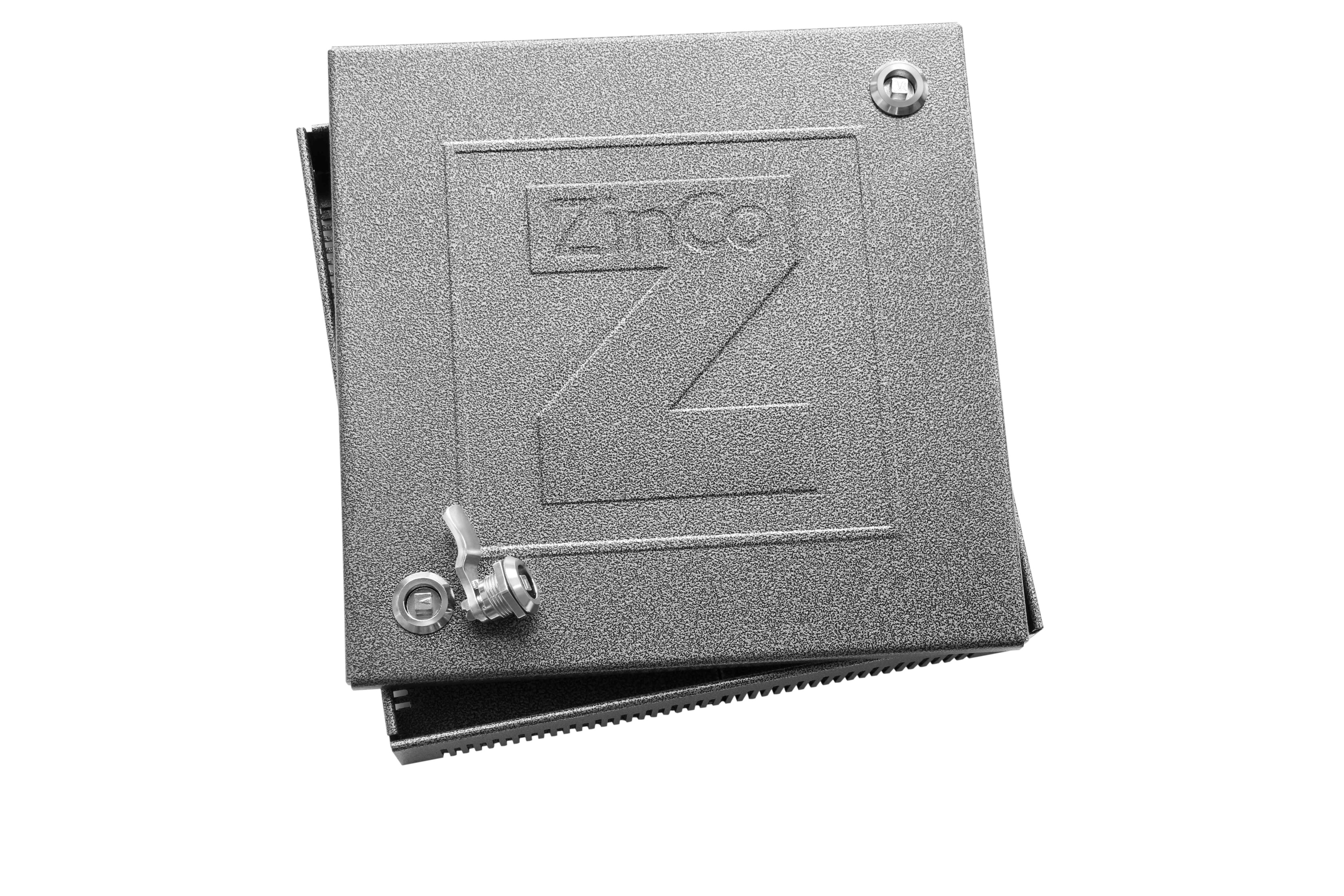

Installation of interlocks / locking set (only possible for Inspection Chamber with cover, lid):
When using an interlocks / locking set, this is installed in the finger holes of the cover, lid. To do this, the nuts on the back of the locking mechanism are unscrewed, the locks are inserted from above through the respective hole and aligned so that the quarter-turn of the locking mechanism grips the edge of the Inspection Chamber. Finally, the nuts are refitted from the underside of the cover, lid and tightened.
Maintenance:
The Inspection Chamber should be opened regularly as part of the greening maintenance and the outlet underneath checked. Debris must be removed to ensure proper functioning.
