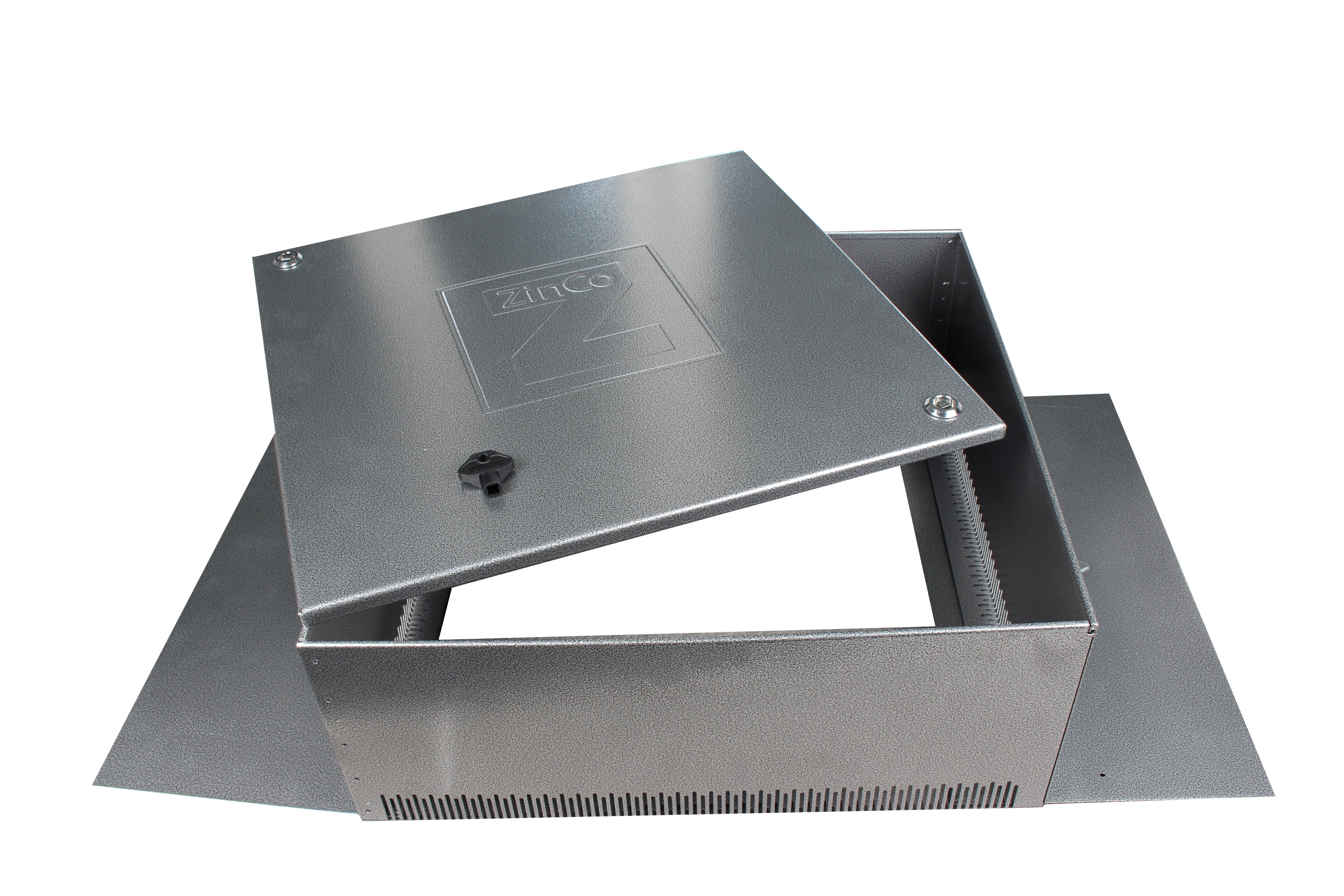

Zinco Inspection Chamber KS 10/57 for Retention Run-off Limiter RD 48, height 10 cm
Top-mounted Inspection Chamber for securing and checking roof outlets within extensive green roofs and gravel-covered roofs. With extension piece(s) also suitable for use within intensive green roofs.
Outer dimension of the chamber approx. 57 x 57 cm, aperture dimension approx. 50 x 50 cm, made of plastic-coated aluminium with drainage slots on the side, lockable cover made of galvanised and plastic-coated sheet steel, antique silver colour, with pull-out support flange on two opposite sides, outer dimension of the chamber with pulled-out flange approx. 57 x 105 cm, weight approx. 9 kg.
| Order Nr.: | 4014 |
|---|---|
| Colour: | antique silver |
| Material: | Cover, lid: galvanized sheet steel, laminated / plastic-coated, Shaft: aluminium, plastic-coated |
| Height [mm]: | 100 |
| Packaging unit: | Piece |
| Weight [kg]: | approximately / approx. 9.0 |
| Outer dimension of the chamber [mm]: | 570 x 570 |
| Aperture dimension [mm]: | 500 x 500 |
| Flange [mm]: | 570 x 1050 |
| Slot width [mm]: | 3,0 |
Height 10 cm, outer dimension of the chamber approx. 57 x 57 cm, aperture dimension approx. 50 x 50 cm, made of plastic-coated aluminium, antique antique silver colour, with pull-out support flange on two opposite sides, circumferential drainage slots, detachable cover, safe to walk on, made of galvanized and plastic-coated sheet steel, with two finger holes in which the locking device can be installed if required, supply and install on the drainage elements above the roof outlets.
Make: Zinco Inspection Chamber "KS 10/57"
Unit: pcs
Order Nr.: 4014
This product is also available in other dimensions / measurements / specifications

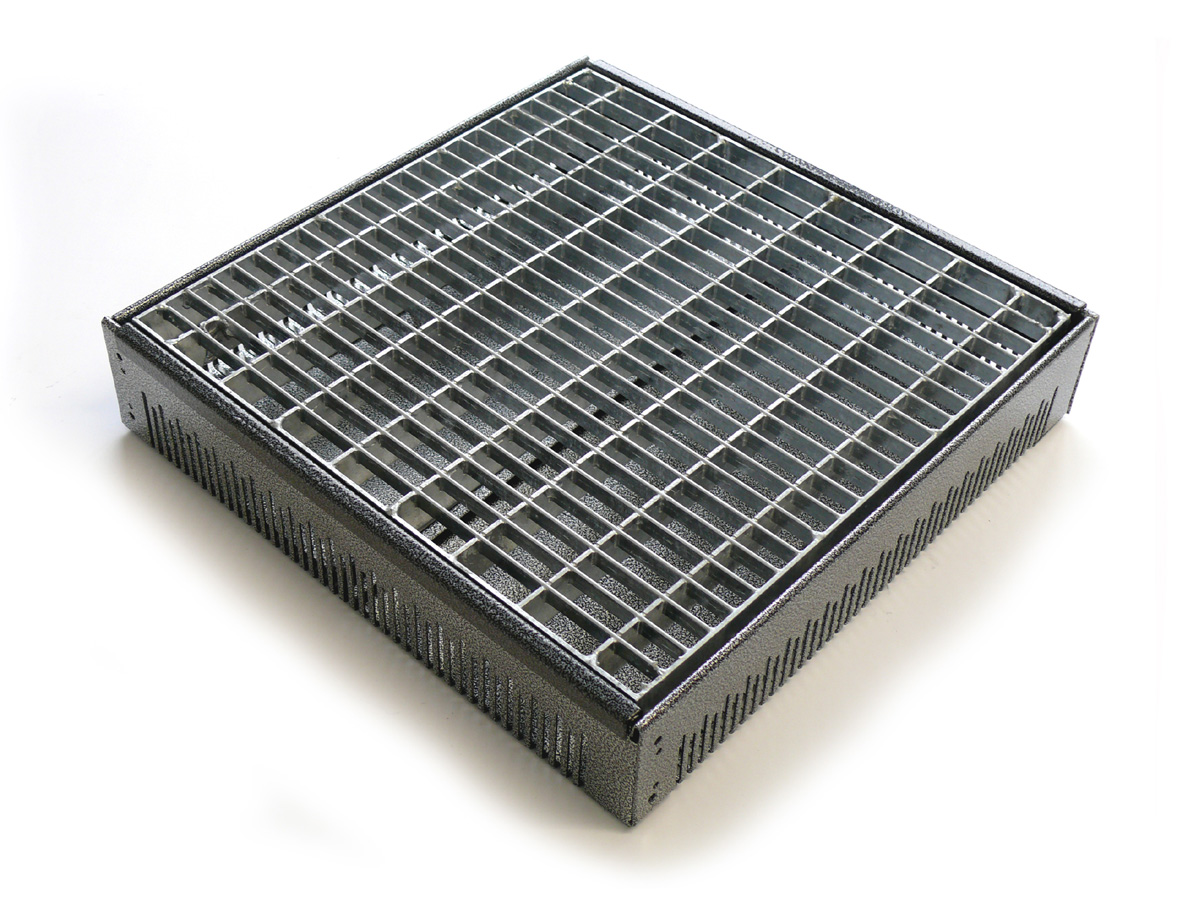

Top-mounted Inspection Chamber for securing and checking roof outlets within extensive green roofs and gravel-covered roofs. With extension piece(s) also suitable for use within intensive green roofs.

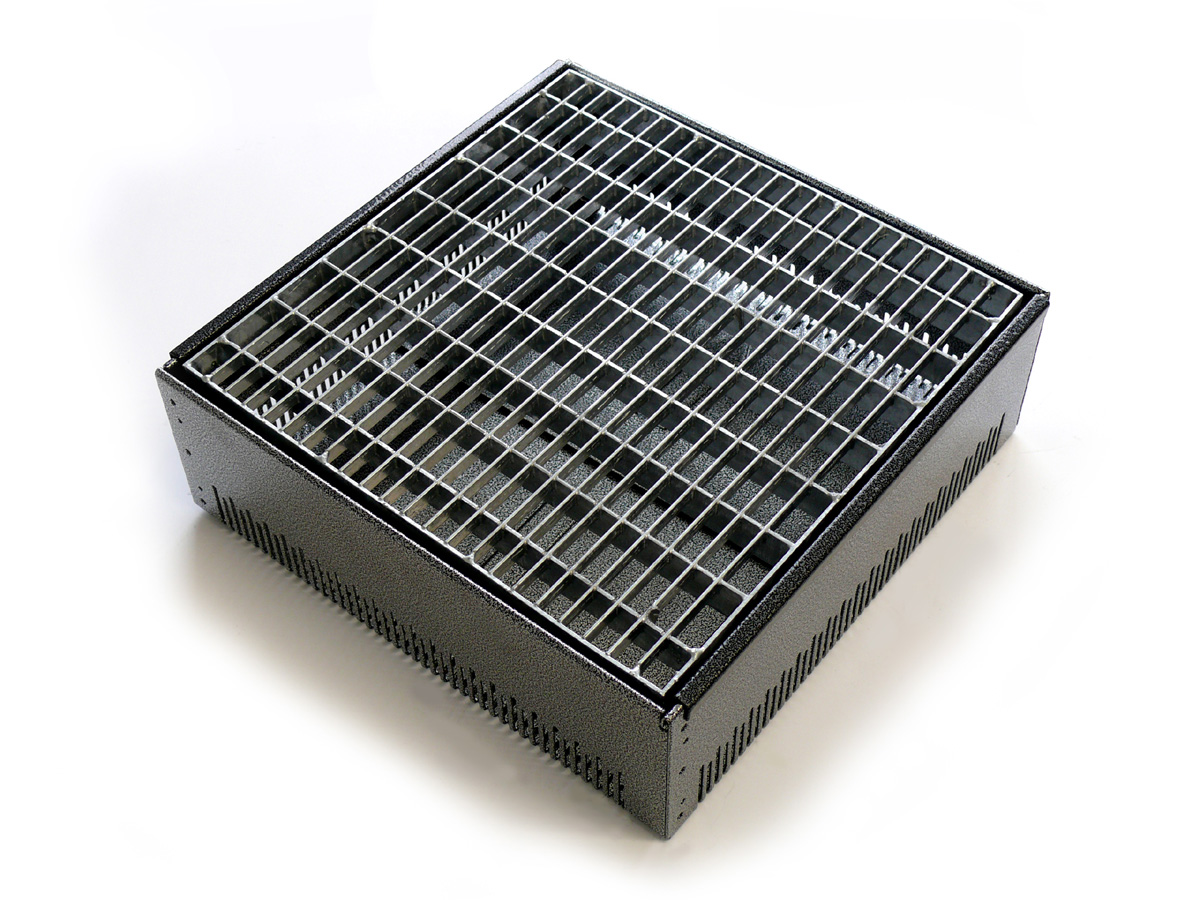

Top-mounted Inspection Chamber for securing and checking roof outlets within extensive green roofs and gravel-covered roofs. With extension piece(s) also suitable for use within intensive green roofs.
