Zinco Retention Spacer RSX 80, height 80 mm, dimensions / measurement 0.60x0.60 m
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).
Heavy-duty spacer element made of polypropylene, injection-molded, Colour green, height approx. 80 mm, with integrated cavity system, cavity content > 95%, max. retention volume approx.76 l/m², load bearing capacity up to approx. 50 t/m². The spacer elements can be fixed together using connectors. Requirement: 4 units/element corresponds to 11 units/m²; Order No. 9622.
| Order Nr.: | 3409 |
|---|---|
| Colour: | black |
| Length [m]: | 0,60 |
| Material: | Polypropylene |
| Width [m]: | 0,60 |
| Height [mm]: | 80 |
| Packaging unit: | Piece |
| Weight [kg/m²]: | 6,3 |
| Pressure [kN/m²]: | max. 500 |
| Compatible with bitumen: | yes |
| Additional information: | Cavity volume > 95 %, max. retention volume approx. 76 l/m². |
heavy-duty spacer element made of polypropylene, dimensions / measurements approx. 0.6 x 0.6 m, height 80 mm, Weight approx. 6.3 kg/m², suitable as a retention element for increased loads (e.g. coverings), water retention volume approx. 76 l/m², delivery and installation according to manufacturer's instructions.
Product: Zinco Retention Spacer "RSX 80"
Unit: m²
Order Nr.: 3409
Installation:
The RSX retention spacers are installed side by side on a protective layer, such as the PV Filter Sheet, on a roof with root resistant waterproofing / sealing.
The spacers must be secured against slipping with four connectors per element. Special connectors are available for this purpose, which are inserted into the recesses of the RSX spacers. In this case, staggered installation is not possible.
After installation, the RSX elements must be covered immediately (UV protection!). To prevent the elements from being blown away, it is advisable to weigh them down, for example, with sand or substrate bags. If the RSX spacers are installed in a continuous run with a length of 30 m or more, a 50 mm wide expansion joint must be incorporated.
Cutting:
The elements can be cut using a standard angle grinder, an electric cutter, or a hot wire. All RSX spacers can only be separated from one another at the connecting webs; otherwise, the element becomes too unstable. When cutting, care must be taken to ensure that the layers already installed are not damaged under any circumstances. Should damage occur, it must be reported and repaired immediately. The RSX elements must be cut out around roof outlets according to the outlet size.

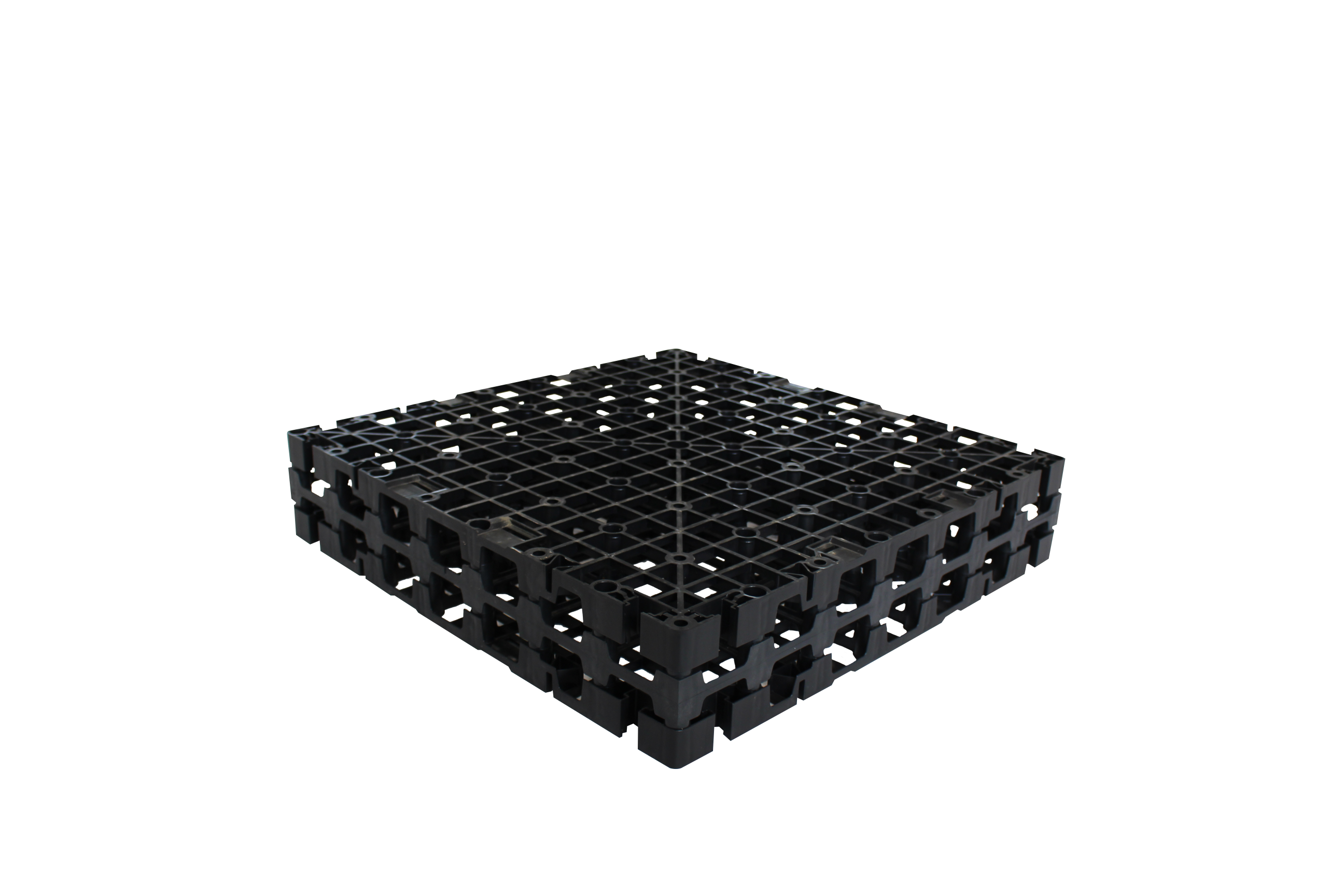

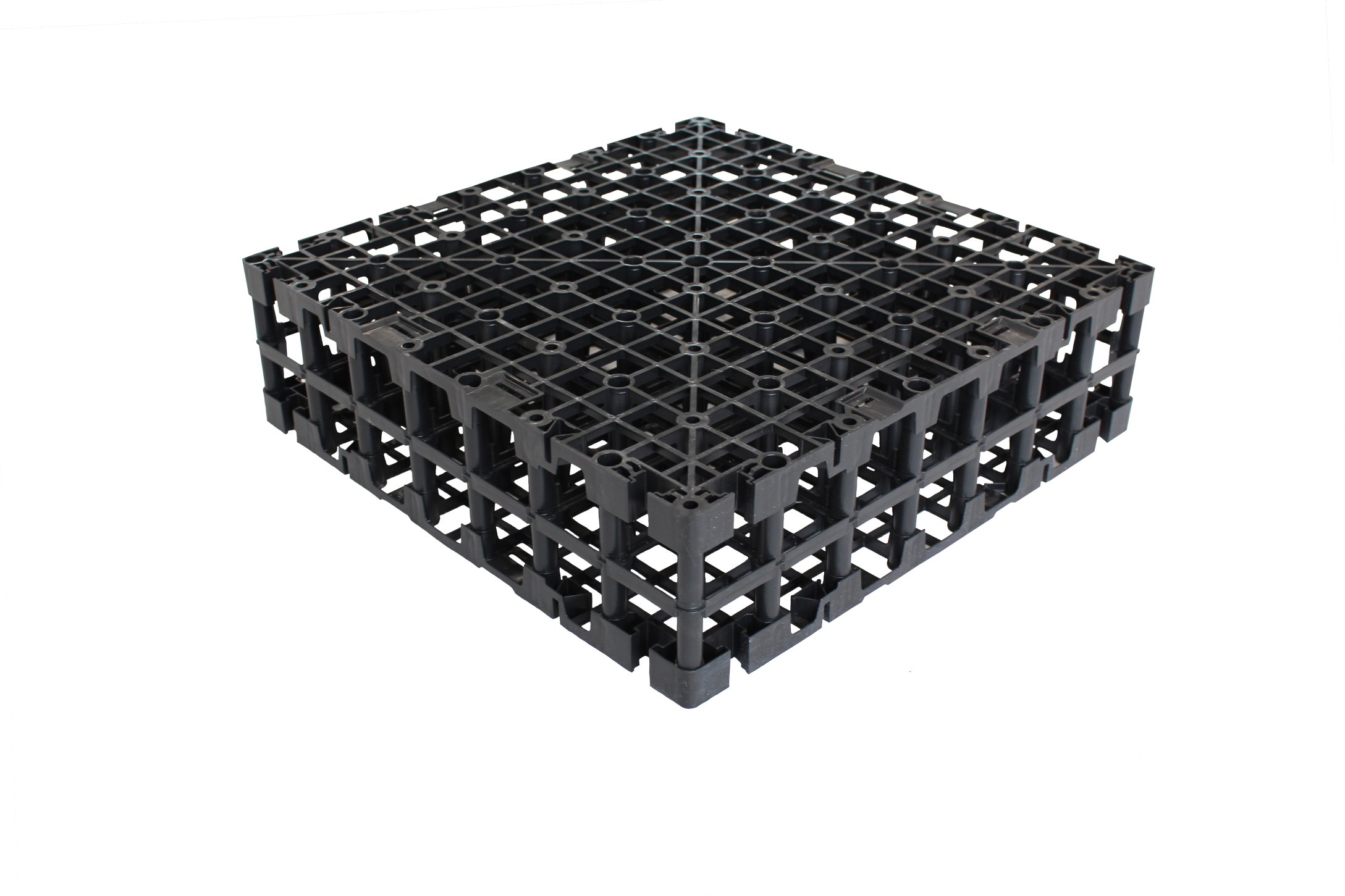

This product is also available in other dimensions / measurements / specifications
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).

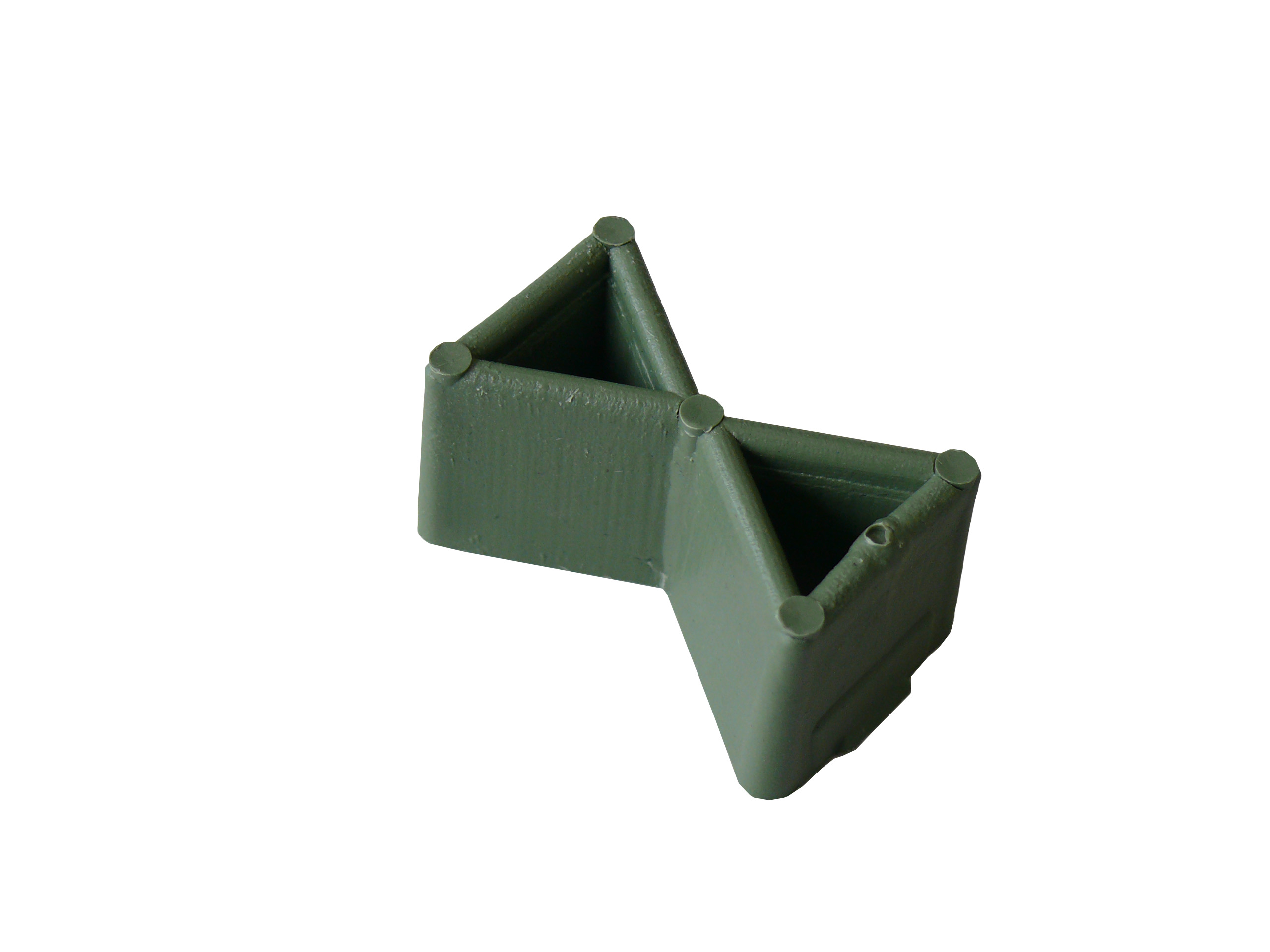

This product has accessories
