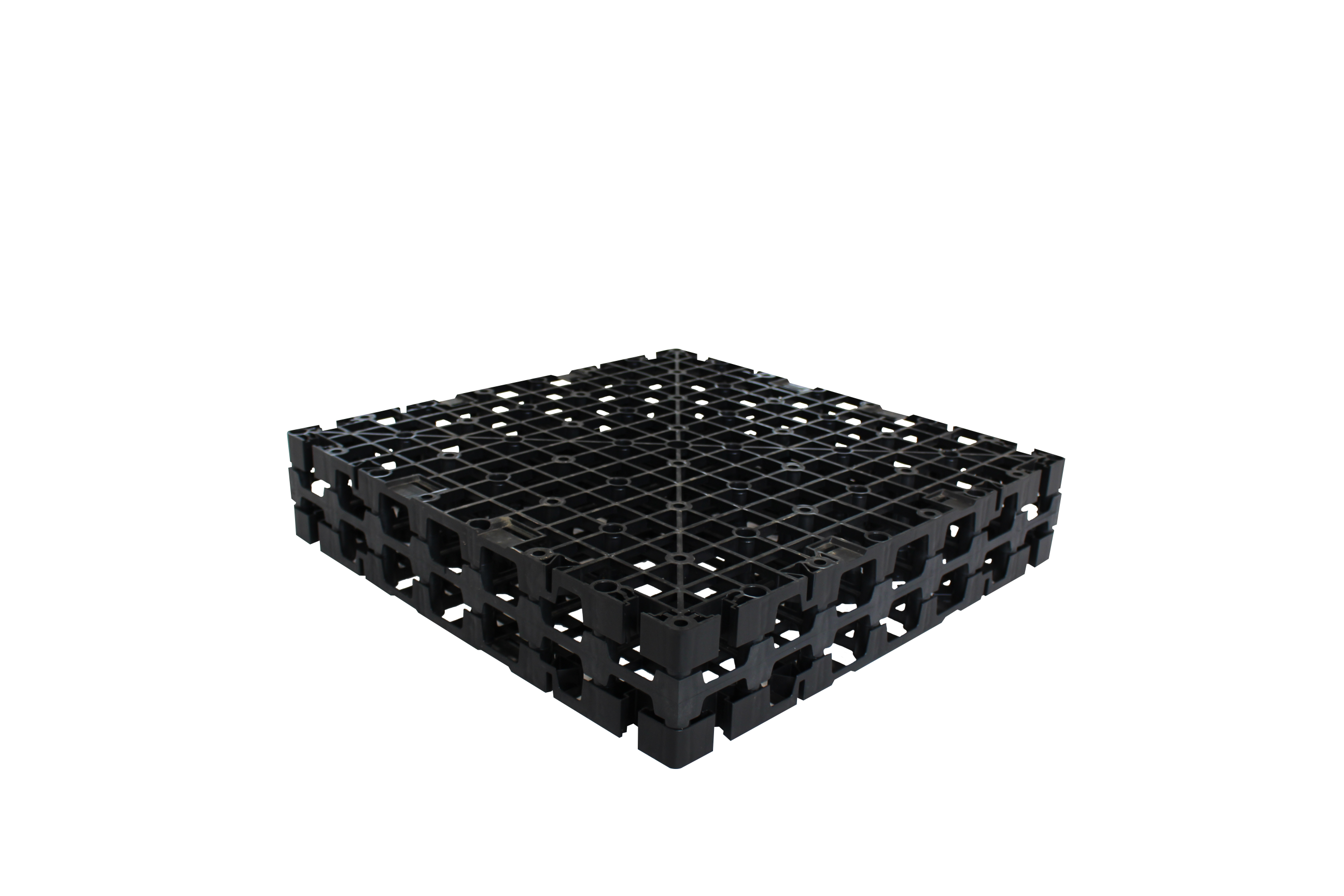

Zinco Retention Spacer RSX 120, height 120 mm, dimensions / measurement 0.60x0.60 m
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).
Heavy-duty spacer element made of polypropylene, manufactured in an injection moulding process, Colour black, height approx. 120 mm, with integrated cavity system / with an integrated multidirectional channel system / with an integrated cavity content of approx. 95%, maximum accumulation volume approx. 114 l/m², load bearing capacity up to approx. 50 t/m². The spacer elements can be fixed together using connectors. Requirement: 4 units/element corresponds to 11 units/m²; Order No. 9622.
| Order Nr.: | 3412 |
|---|---|
| Colour: | black |
| Length [m]: | 0,60 |
| Material: | Polypropylene |
| Width [m]: | 0,60 |
| Height [mm]: | 120 |
| Packaging unit: | Piece |
| Weight [kg/m²]: | 7,6 |
| Pressure [kN/m²]: | 500 |
| UV-stabilized / protected against UV light: | Yes |
| Additional info: | Cavity volume > 95%; maximum accumulation volume approximately / approx. 114 l/m² |
heavy-duty spacer element made of polypropylene, dimensions / measurements approx. 0.6 x 0.6 m, height approx. 120 mm, Weight approx. 7.6 kg/m², suitable as a retention element for increased loads (e.g. coverings), water retention volume approx. 114 l/m², delivery and installation according to manufacturer's instructions.
Product: Zinco Retention Spacer "RSX 120"
Unit: m²
Order Nr.: 3412
Installation:
The Retention Spacers RSX are laid side by side on a protective layer, e.g. the Filter Sheet PV, on the roof with root resistant waterproofing.

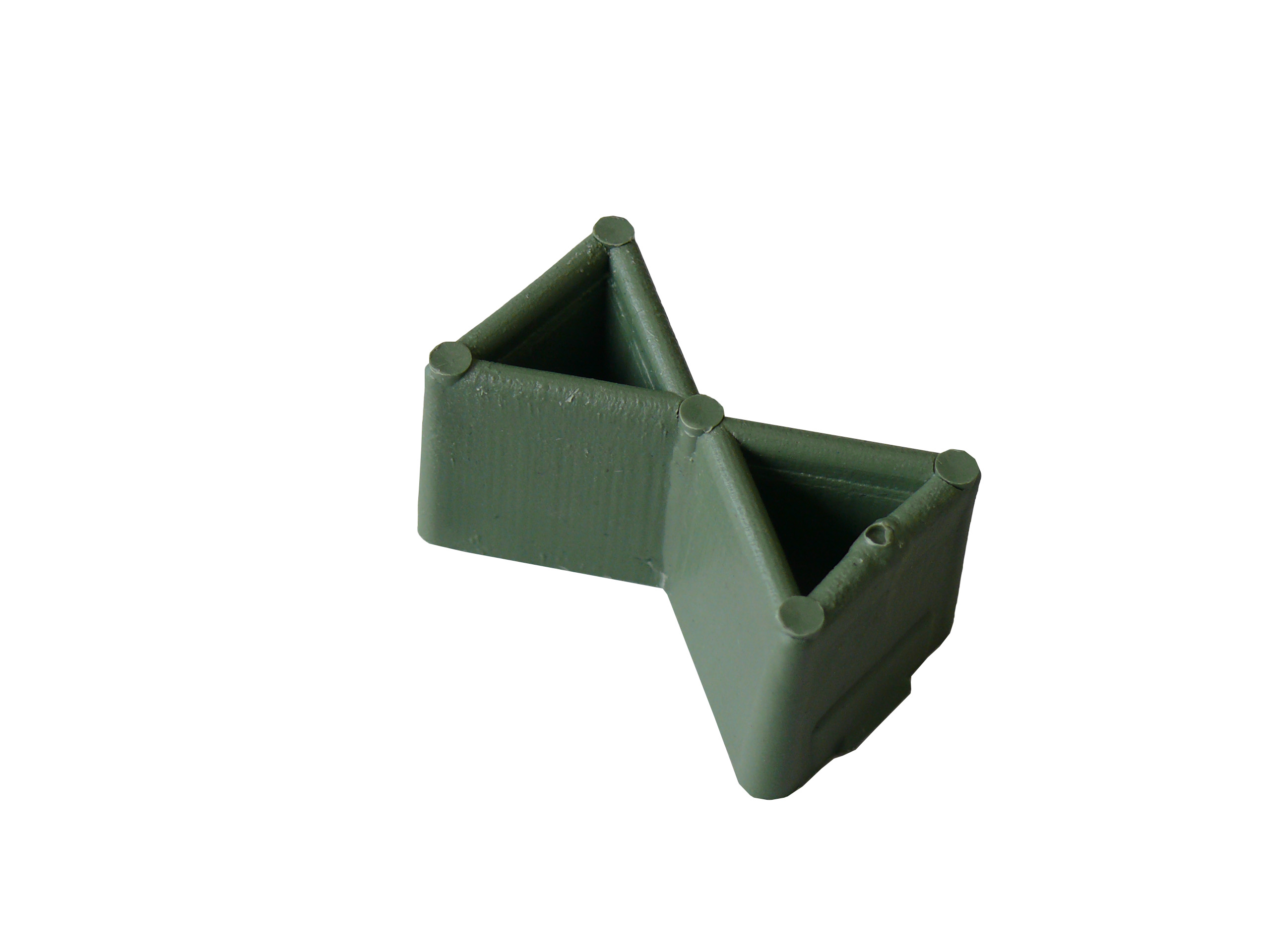

If the spacers are to be driven over, it is advisable to secure them against slipping beforehand with four connectors per element. Special connectors are available for this purpose, which are inserted into the recesses of the RSX spacers. In this case, offset installation is not possible.
The RSX elements must be covered immediately after installation (UV protection!). To prevent the elements from blowing away, it is advisable to weigh them down with sand/substrate bags, for example. If the RSX-Spacers are to be installed in one piece over a length of more than 30 m, a 50 mm wide expansion joint must be installed.
Cutting:
The elements can be cut with a standard angle grinder, an electric cutter or a hot wire. All RSX spacers can only be separated from each other at the connecting webs, otherwise the element will be too unstable. When cutting, care must be taken to ensure that the already laid layers are not damaged under any circumstances If damage does occur, it must be reported and repaired immediately. The RSX elements must be cut out over roof outlets according to the outlet size
This product has accessories
High-performance polypropylene spacer elements for use on roof surfaces without gradients / inclines, especially for retention roofs with increased loads (e.g. walkways and driveways).

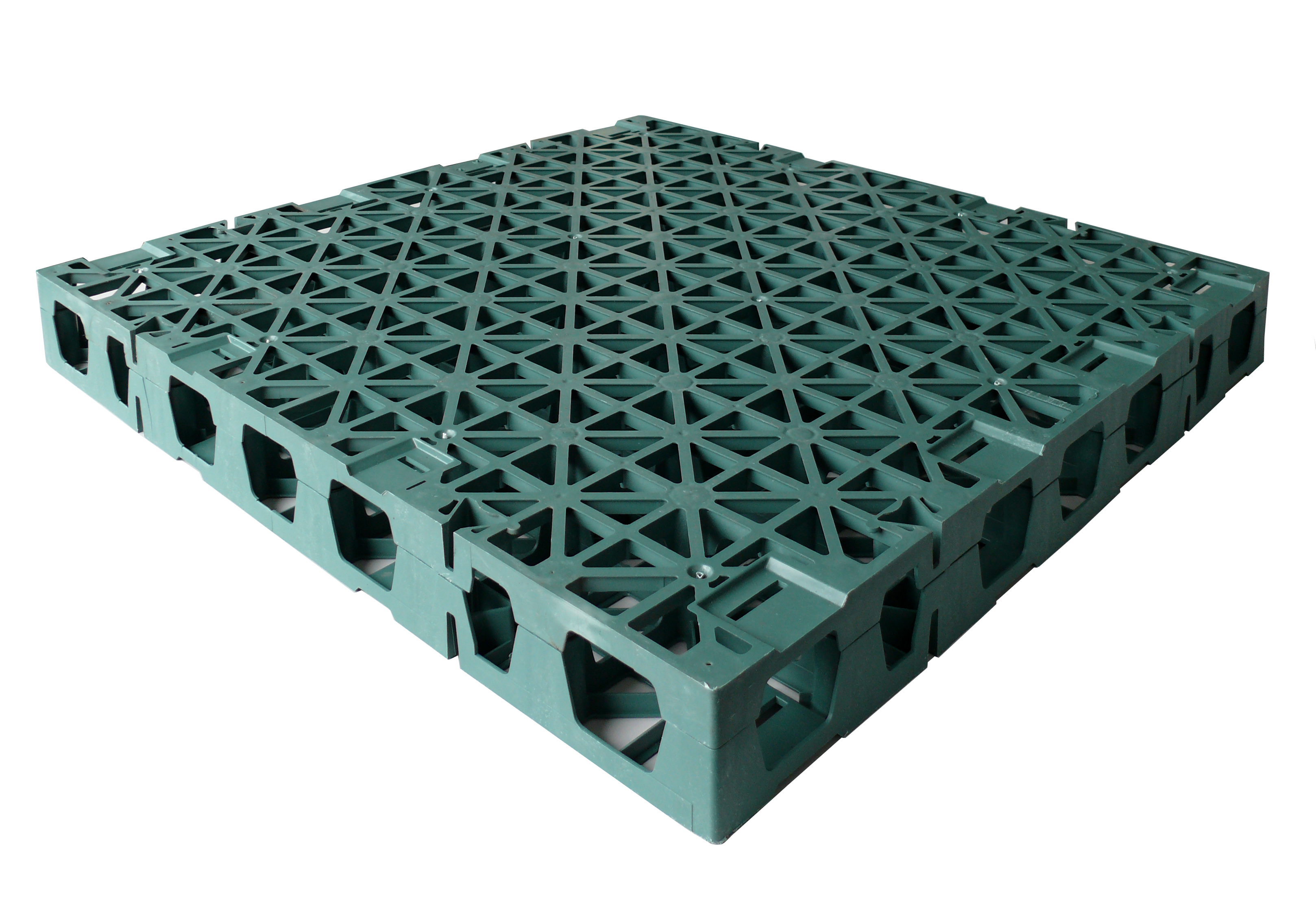

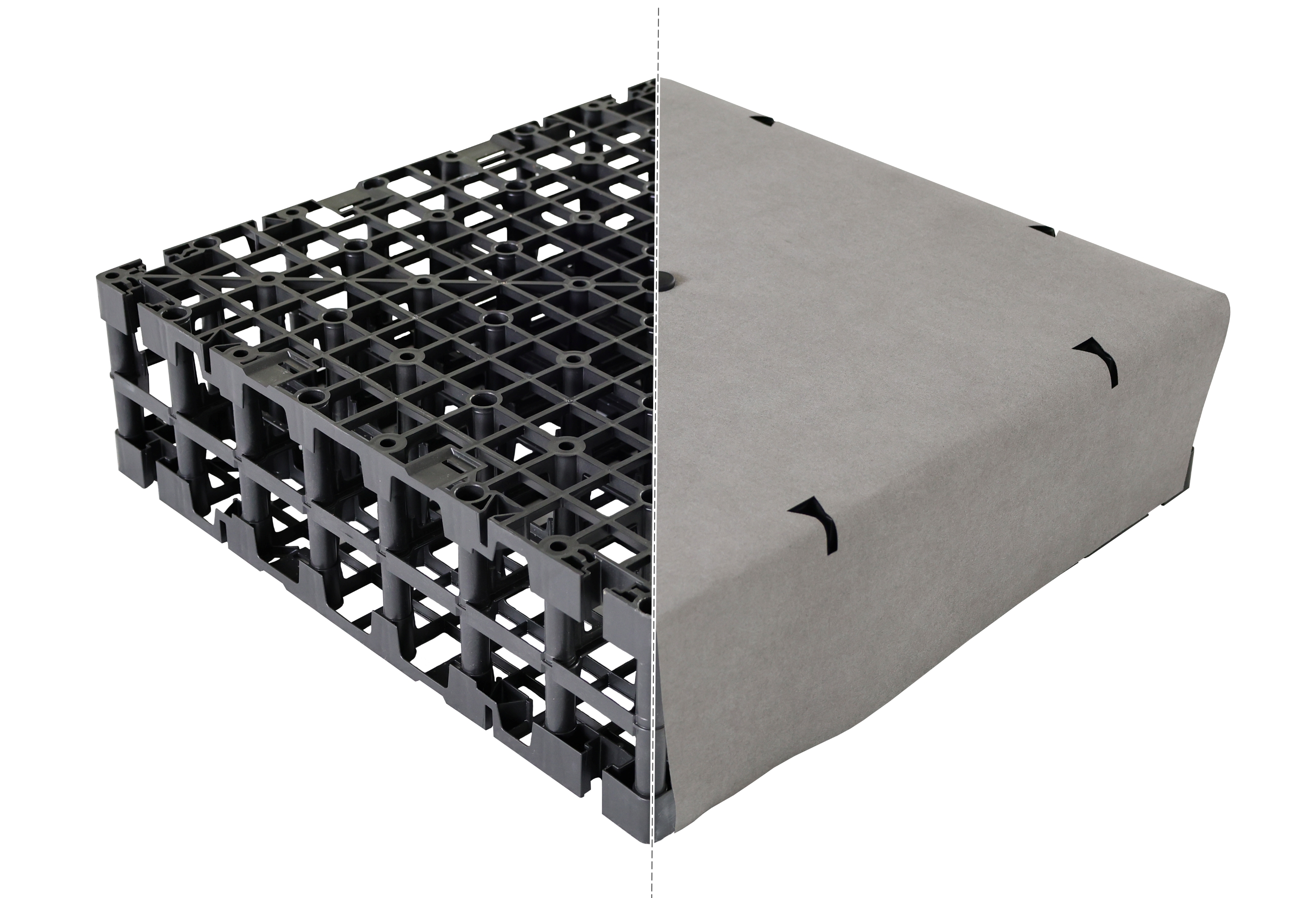

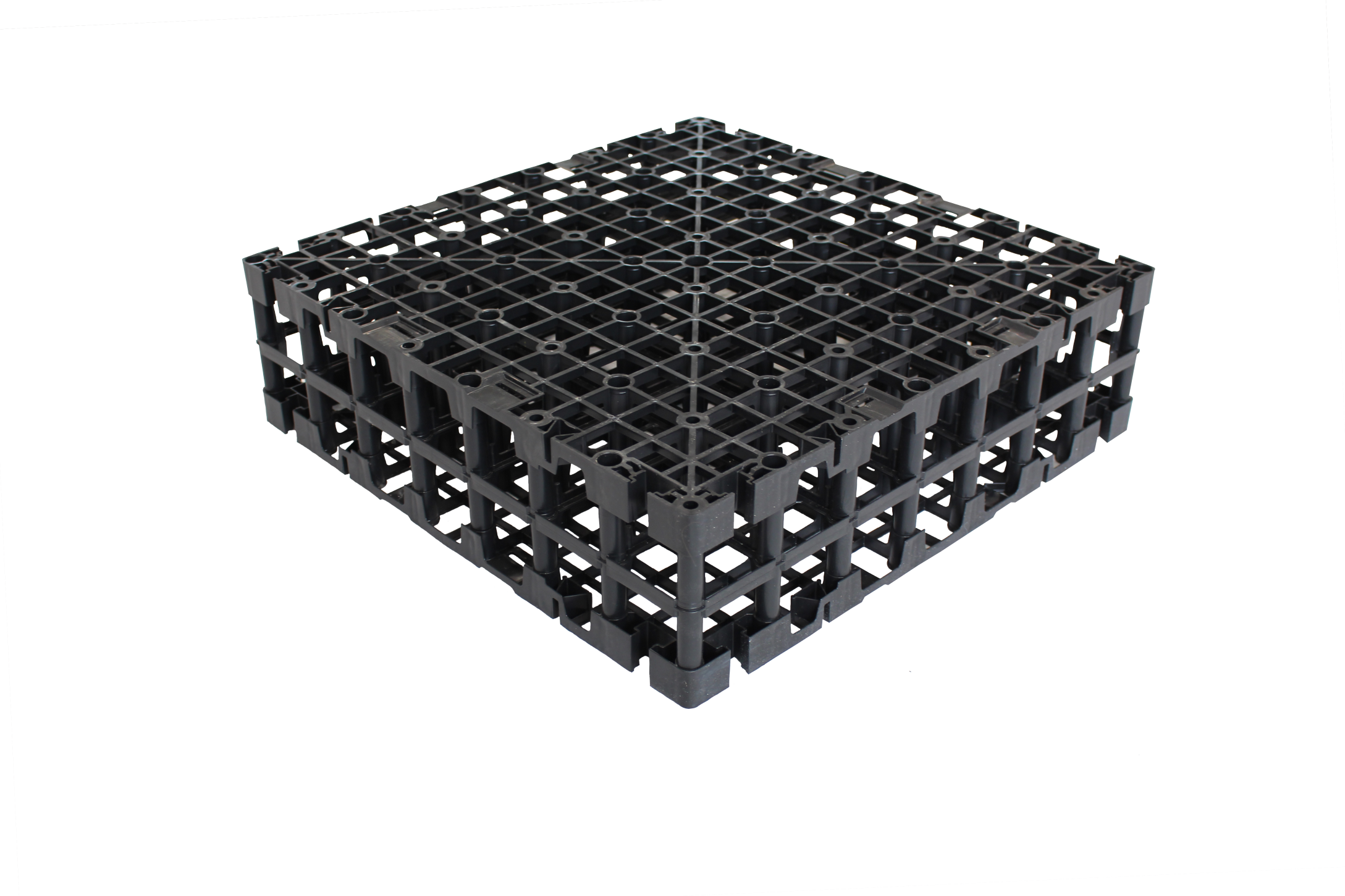

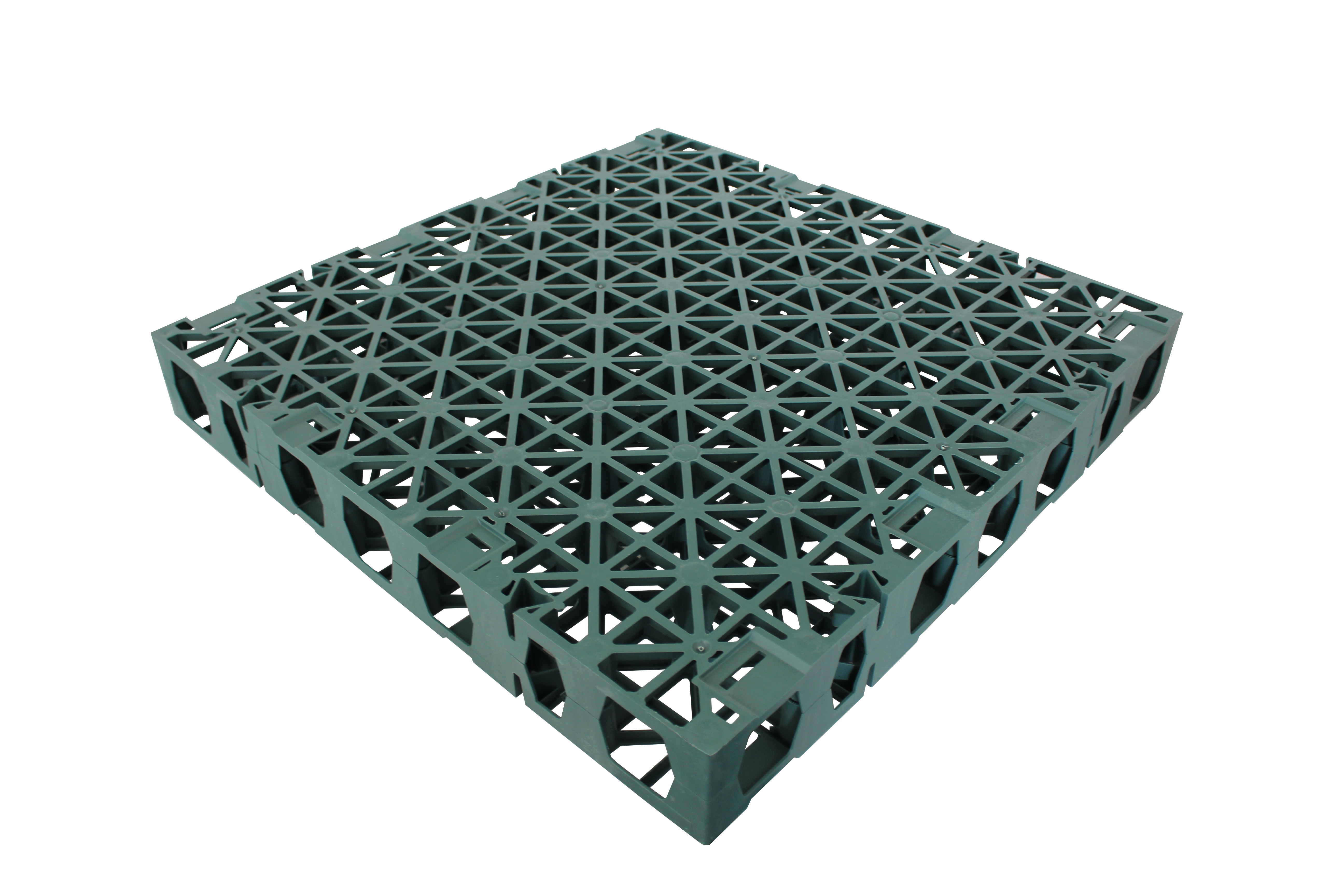

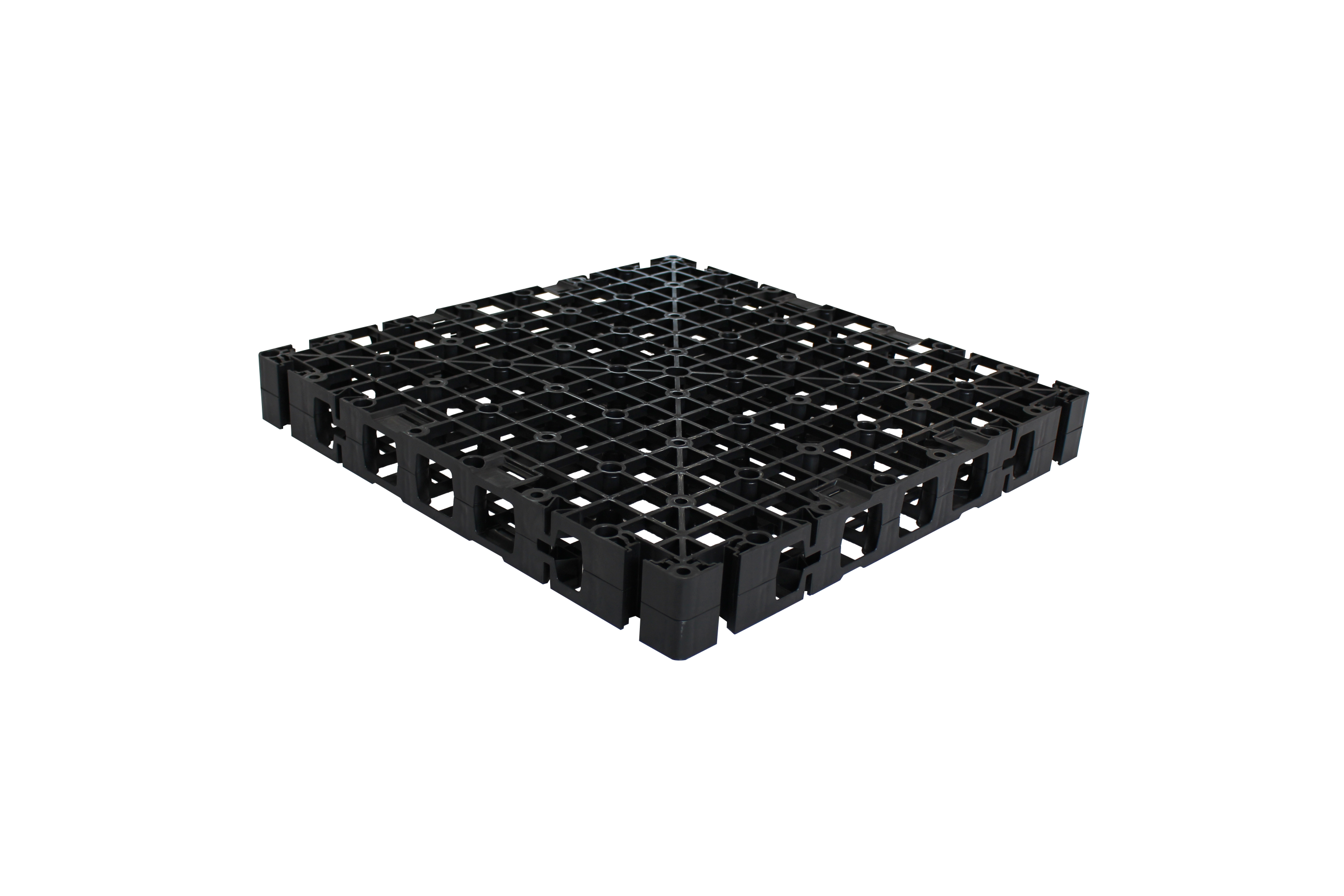

This product is also available in other dimensions / measurements / specifications
